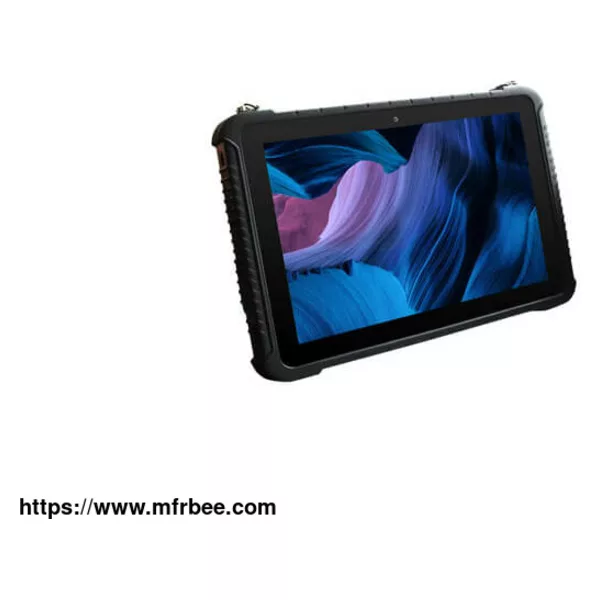

Expad-10 Explosion proof Windows Tablet

Explosion proof windows tablet, mode Expad-10, is an industrial-grade rugged three-proof tablet computer, supports Windows 10 operating system, 10-inch touch screen. This intrinsically safe flameproof tablet adopts Intel processor, 8G running memory + 128G body memory, 4G full Netcom, has passed IIB explosion-proof grade, can be used in flammable and explosive environments in Zone 1 and Zone 2, such as petroleum, chemical, pharmaceutical, military, oil depots, tank farms and other dangerous places with flammable and explosive gases, which is convenient to take pictures on the spot, patrol scheduling and communicate in real time for employees in enterprises.

Explosion Proof Windows Tablet For Hazardous Areas

The explosion-proof windows tablet for hazardous areas provides two key advantages: an intrinsically safe design with a high level of protection and enhanced mobility in the harshest environments. Engineered to be intrinsically safe, this explosion proof windows tablet eliminates the risk of sparks or ignition sources, ensuring safe operation in potentially explosive areas. Its robust construction and specialized materials provide a high level of protection against external hazards. Moreover, this tablet offers exceptional mobility, allowing it to withstand extreme temperatures, dusty locations, and wet environments. Users can rely on its durability and functionality, enabling seamless operation and data access in challenging industrial settings.

Parameters of Expad-10 Explosion proof Windows Tablet

Explosion-proof Type Intrinsically safe windows tablet

Explosion proof Mark Ex ib IIB T4 Gb

Protection Class IP65

Appearance Size 280mm*187*mm22mm

Weight Bare metal 1014g

Colour Black

Screen Size 10 inch, ratio 16:10, resolution 1200×1920, brightness 330 cd/m2

Touch Screen 10-point capacitive screen, G+G, hardness is above 7H, anti-scratch protection, SLR sunlight-visible film is optional

Camera Front 2 million pixels with charging indicator; rear 8 million pixels

Speaker Built-in 8Ω/0.8W waterproof speaker

microphone Sensitivity: -42db, output impedance 2.2kΩ

Battery Type 7.4V/5000mAh intrinsically safe lithium-ion battery, detachable, standard 1pcs battery

Battery Life 5 hours (50% volume,200 lumens brightness by default, play 1080P HD video)

System Configuration

Operating System Windows 10 Home 64bit, the default language: English（Windows 10 Pro 64bit, Windows 10 IOT 64bit）

CPU Type Intel® Skylake M3-6Y30, speed 4M Cache, 2.20 GHz

GPU Type Intel® HD Graphics 515

Body Memory RAM 8GB + ROM 128GB

External Storage Support TF memory card, expandable 128G

Gravitational Acceleration sensor Support

WIFI Module WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Dual-band WIFI intel 3165D2WG(3.3v)

Bluetooth BT4.2 (BLE) class1 Transmission distance: 10m

Network Type 4GZ,4G whole network, LTE FDD: B1/B3/B7/B8/B20/B28A

GPS U-blox NEO-7, support, GPS; capture sensitivity: -160 dBm; cold start time:<50 seconds, hot start time: <28 seconds, frequency: 0.25 Hz … 10 MHz (configurable)

Data Collection (Optional）

One-dimensional Code (optional) MOTO SE655E100R

Optical Resolution: 5mil

Scan Speed: 50 times/s

Support Symbology: UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11

QR Code (optional) Honeywell N3680 Hard decoding

Optical resolution: 5mil

Scan speed: 50 times/s

Support symbology: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse

Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse

Data Interface

Micr USB Micr USB 2.0

type A USB USB 3.0

Power DC Interface DC 12V 4A ∮4.0mm power interface

headphone Audio output ∮3.5mm Standard headphone

HDMI Audio and video output HDMI 1.4a Type C

Extension Ports 12pin Pogo Pin

DB9 Interface UART serial port, RS232 TTL level

RJ45 Interface 10/100 self-adaptive network port

Standard Accessories

OTG Adapter Cable USB OTG to MICRO USB cable, cable length 45mm

USB Cable USB to micro 5P L=1.2M, 4 cores plus aluminum foil plus screen

Power Adapter Standard configuration Input AC100V ~ 240V、50Hz/60Hz, output DC 12V/4A

Optional Accessories

Optional Kind Strap, stylus, car charger, car holder, charging base, shoulder strap, leather case, strap (must be used with leather case)

working Environment

Operating Temperature -20℃～+40℃

Storage Temperature -40℃～+60℃

Relative Humidity ≤98％(25℃)

Atmospheric Pressure 80kPa～106kPa

Applicable Places Zone 1, Zone 2 in hazardous environment with Class IIB explosive gas

Features of Expad-10 Explosion proof Windows Tablet



01

Intrinsically Safe Type

IIB explosion-proof grade, explosion-proof mark Ex IB IIB T4 Gb.

02

Windows 10 Operating System

Intel processor, full netcom 4G.

03

10-inch Touch Screen

Optional SLR sunlight film, can be seen clearly under strong light.

04

Optional One-dimensional and Two-dimensional Scanning Code

Optional fingerprint identification.

05

5000mAh Intrinsically Safe Lithium Ion Battery

large capacity removable.
