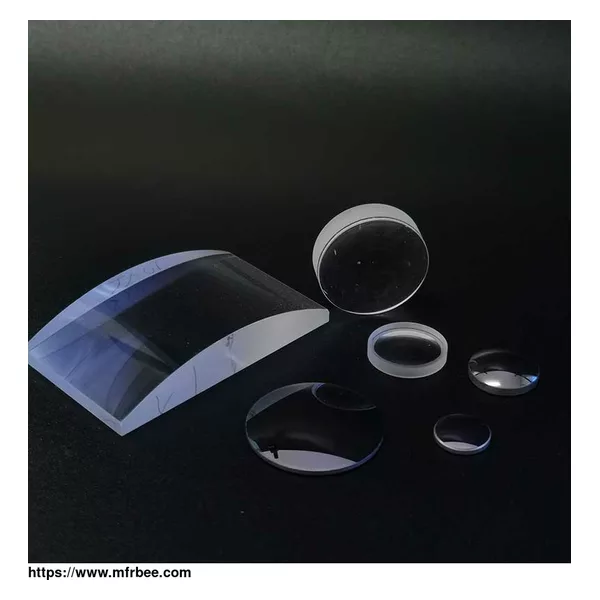

Cylinder Lenses

Cylindrical lens definition: A cylindrical lens is an optical lens that has a curved surface that is only curved in one direction, which can bend or focus light in a particular direction.

TC OPtics is an excellent cylindrical lens factory/ company, we produce different types of cylindrical optical lenses, such as concave/cylindrical lens china, astigmatism cylindrical lens, plano cylindrical lens and especially widely used to anamorphic compression of LD (laser diode) output beam. You are welcomed to consult the cylindrical lens price.

Cylindrical Lens Optics Advantages

The circular geometry among cylindrical optics makes installation and adjustment easy.

Pre installed on a carved black anodized aluminum ring

Full contact between mounting unit and retaining ring

The optical element in cylinder lenses is made of n-bk7 glass

The focal length can be selected from - 50.0mm to - 1000.0mm

Compatible with SM1 lens tube between cylinder lens

The output of the laser diode is collimated and rounded

Cylindrical Lens Uses

Cylindrical lens are widely used in laser area. Cylindrical lens, belongs to optical lens, can creat a laser line in laser marking and inspection systems. Cylindrical lenses are used to focus or expand light in a variety of laser and light-based equipment for applications, such as laser scanning optical metrology systems, laser alignment and inspection tools, and laser additive manufacturing and laser processing equipment.

Cylindrical lenses are used for a wide range of applications that require precision shaping or focusing of light in one direction only. Some examples include laser optics, barcode scanning, and optical data storage devices. They are also used in eyeglasses for correcting astigmatism.

As one of professional optical component suppliers and precision optics manufacturers, TC OPtics is your trustworthy manufacturer. Contact us for your optical lens wholesale needs.

TC Optics is a professional custom optics manufacturer, we provide cylindrical glass lens, cylindrical lens diagram, cylindrical optics, precision optical design and etc. Contact us to know more.
