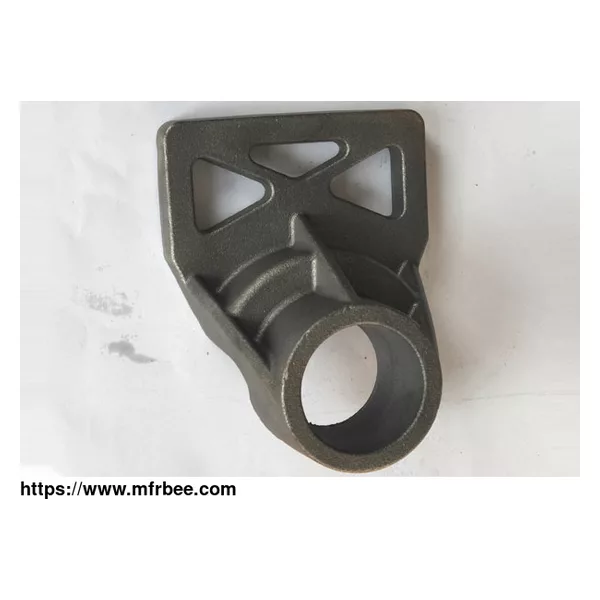

CASTING
Product Quick Detail
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Casting is one of the basic processes of modern equipment manufacturing. The casting process can be divided into three basic steps, namely casting metal preparation, mold preparation, and vacuum
pressure casting processing. Casting metal refers to the metal material used for casting castings in the production of castings. It is an alloy in which metal elements are the main components and
other metals or non-metal elements are added. It is usually called casting alloy, which mainly includes cast iron, cast steel, and cast non-ferrous alloy.
As one of the professional titanium casting companies, ECTN provides our clients with advanced metal casting services such as high pressure aluminum casting and low pressure aluminum casting,
custom aluminum casting, custom brass casting, permanent mold aluminum casting and etc.
As a common catrgory of advanced metal casting, gravity mold casting is an ideal choice for the production of various complex aluminum castings of automotive parts.
Advantage of Casting
It Can Produce Parts With Complex Shapes, Especially Blanks With Complex Cavitie
Wide Adaptability, Metal Materials Commonly Used In Industry Can Be Cast, From A Few Grams To Hundreds Of Tons.
Wide Adaptability, Metal Materials Commonly Used In Industry Can Be Cast, From A Few Grams To Hundreds Of Tons.
The Shape And Size Of The Casting Are Very Close To That Of The Parts, Reducing The Amount Of Cutting, Which Is Non-cutting.
The Shape And Size Of The Casting Are Very Close To That Of The Parts, Reducing The Amount Of Cutting, Which Is Non-cutting.
It is Widely Used
40%~70% of agricultural machinery and 70%~80% of machine tools are castings.
Casting FAQs
Casting Cracks
1. Usually, the metal solidifies too fast at this place, resulting in casting defects (joints);
2. Cracks caused by high temperatures.
The solution: Use low-strength investment materials, reduce the casting temperature of the metal as much as possible, and do not use alloys with low ductility and brittleness.
Easy To Crack When Die-casting Thin-walled Products
If this problem occurs, it may be due to material problems or poor mold opening or improper selection of process parameters. Try to control the proportion of waste not to exceed 30%. The mold
retention time should not be too long, about 3s per mm of wall thickness, and ejection delay is not allowed. Long, generally 0.5-2s.
Metal Splashing During Die Casting
Reinstall the mold; increase the clamping force and adjust the sand casting and die casting machine to keep the movable and fixed mold mounting plates parallel to each other; add a support plate on
the movable mold to increase the rigidity of the sleeve plate.
Why Can't The Inner Processing Of Aluminum Die-casting Hole Exceed 0.25mm
In order to be suitable for die casting, people add a lot of silicon to the aluminum alloy used for die casting. When the aluminum alloy condenses in the mold, the silicon will float on the surface
to form a layer of silicon film that is very hard and wear-resistant. Some OEM designers use this feature to directly design the inner surface of the die casting hole as a bearing surface. This
silicon surface layer is generally only 0.2 to 0.9 mm thick. With too much processing, the life of the bearing surface will be shortened.
Unclear Marking During Casting
1. The mark on the mold is not clear enough (the reason for the mold);
2. The markings on the mold are not clear. You can analyze whether the particle size of the following molding sand is fine enough and whether the strength is high enough;
3. The refractoriness of the mold and coating is not enough.
5.Another factor that is easily overlooked is the casting location of the casting mark. When determining the casting position, try to keep the casting mark on the bottom or side to avoid being on
the top surface.
If you want to know more about aluminium casting price, please contact us.
As a leading China CNC manufacturing company in China, ETCN offers precision CNC machining China and manufacturing services covering different fields in China CNC grinding services like iron metal
casting services, CNC machining (including plastic) services, CNC milling services, CNC punching services and CNC turning services.
