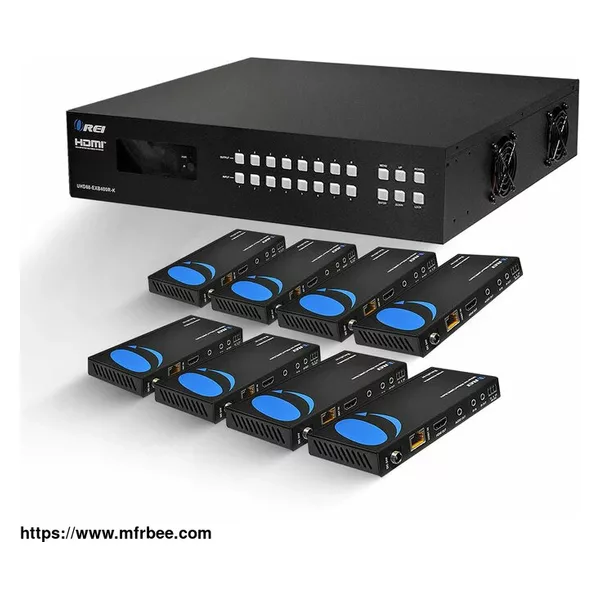

4K 8x8 HDMI Matrix Switcher Extender
Product Quick Detail
- FOB Price
- USD $2,599.99 / Piece
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Key Features:
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Support 18Gbps lossless compressed HDBaseT signal transmission
- HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
- Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports
- 8 HDMI inputs, 8 HDMI & HDBaseT mirrored outputs
- Support 4K->1080P Down Scaler for each output port
- HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
- HDBaseT output can extend video transmission distance up to 492ft / 150m for 1080p or 394ft / 120m for 4K2K via a single Cat 5e/6/7 cable
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS HD Master Audio)
- Support IR matrix
- Audio de-embedded is supported via analog and coax ports
- Advanced EDID management and CEC control are supported
- 24V POC on all HDBaseT ports
- 1U rack-mounted design with front panel OLED display
- Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
- This unit requires only one power adapter to work
