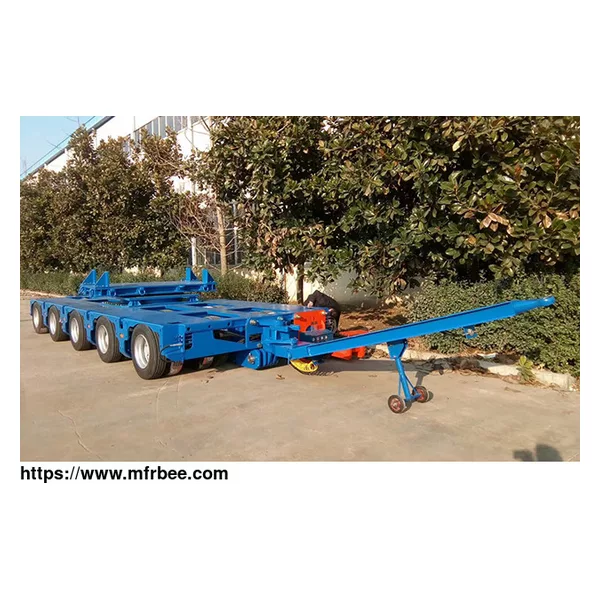

MODULAR TRAILER
Modular trailers for heavy equipment are normally used for transporting heavy loads over 80t. The transporting heavy loads are generally applicable to the medium and long-distance highway
transportation of overweight and ODC cargo (over length, over width, over height, overweight) in construction, mining, metallurgy, chemical industry, thermal power equipment, power station
construction, heavy machinery manufacturing, oil gas field, bridge, loading and offloading operation, railway construction, and other industries.
Modular trailer for sale is mainly composed of box shape center frame, hydraulic suspension, axle, steering system, hydraulic system, air braking system, power pack, and other components. The
modular trailer has the advantages of adjustable platform height, uniform axle load, less turning radius, and so on.
MODULAR TRAILERS FOR HEAVY EQUIPMENT SPECIFICATIONS
Wheelbase (mm) 1550
Quantity of tires 08 tires/axle
Tire specification 215/75R17.5
Rim specification 6.00 – 17.5 (10 holes)
Approach angle (degree) 25°
Departure angle (degree) 30°
Width of Platform (mm) 2990
Height of platform (mm) 1080+ 300
-300
Height of draw rack (mm)
(platform 1080mm) 780
Steering Mechanism Full hydraulic trail steering
Suspension Hydraulic Suspension
Support mode of the platform 3 and 4 points.
Brake system Dual pipeline control,
Frame Flatbed
Module speed (without load) (km/h) 80
Loading ability (tons/axle line) 25T 22.5T 15T
5 Km/h 18Km/h 40Km/h
Total suspension stroke (mm) 600
Maximum steering angle of the first wheel 55°
HOW IS A MODULAR TRAILER DIFFERENT FROM A TRADITIONAL FLATBED TRAILER?
A modular trailer is different from a traditional flatbed trailer in several ways.
Firstly, a trailer modular can be configured in different combinations by adding or removing modules to meet the specific requirements of the load being transported, whereas a traditional flatbed
trailer has a fixed size and configuration.
Secondly, modular trailers are typically designed to carry heavier loads and have a higher load capacity than traditional flatbed trailers.
Finally, modular trailers are more maneuverable than flatbed trailers and can navigate through tighter spaces and around obstacles with greater ease, making them ideal for transporting oversized
and overweight loads in difficult terrain.
WHY CHOOSE RUI TRAILER'S MODULAR TRAILERS FOR HEAVY EQUIPMENT
There are several reasons why you should choose RUI TRAILER's modular trailers for heavy equipment:
Versatility: RUI TRAILER's modular trailers can be configured in different combinations and layouts, allowing for versatility in transporting various types of heavy-duty transport equipment.
Customizability: The modular design of RUI TRAILER's transporting heavy loads allows for customization according to the specific requirements of the customer. This means that you can configure the
trailer modular to meet your exact needs.
Safety: RUI TRAILER's modular trailers are designed with safety in mind. They come equipped with features such as anti-lock braking systems and air suspension systems, ensuring a safe and stable
ride for your heavy equipment.
Durability: The modular trailers for heavy equipment are made with high-quality materials and construction techniques, ensuring durability and longevity even in tough conditions.
Efficiency: RUI TRAILER's modular trailers are designed for efficiency, with features such as hydraulic steering systems and low dead weight. This means that you can transport your heavy equipment
with less fuel consumption and lower operating costs.
Overall, RUI TRAILER heavy transport trailers manufacturer is an excellent choice for heavy-duty transportation, offering versatility, customizability, safety, durability, and efficiency.
