Samarium Cobalt Magnet
Product Quick Detail
- 1
- 1
- 1
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

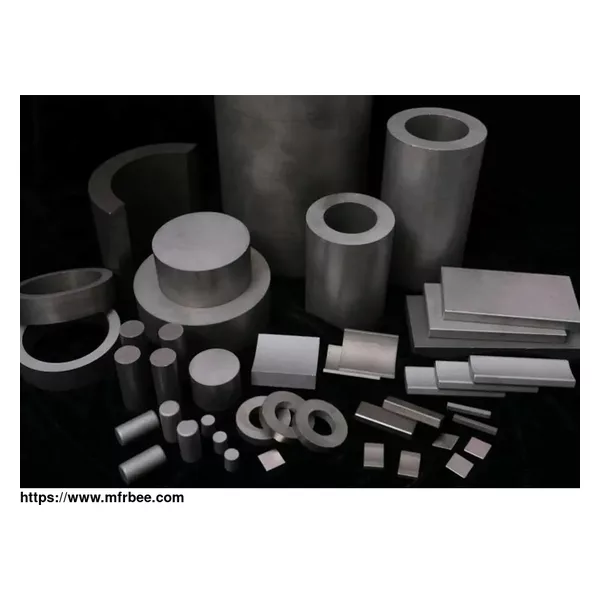

Samarium cobalt magnet
There are two types of SmCo magnets, SmCo 1:5 and SmCo 2:17.
SmCo5 Magnets
(BH)max values of regular SmCo5 magnet are between 14 and 24MGOe. SmCo5 is made of only Samarium and Cobalt and exhibits better corrosion resistance and machinability.
Sm2Co17 Magnets
(BH)max values of conventional Sm2Co17 magnet are between 22 and 32MGOe which is much higher than the former SmCo5 series. Besides two basic elements Samarium and Cobalt, different grades of Sm2Co17 vary in the content of Iron (Fe), Copper (Cu), and Zirconium (Zr).
There are two types of SmCo magnets, SmCo 1:5 and SmCo 2:17.
SmCo5 Magnets
(BH)max values of regular SmCo5 magnet are between 14 and 24MGOe. SmCo5 is made of only Samarium and Cobalt and exhibits better corrosion resistance and machinability.
Sm2Co17 Magnets
(BH)max values of conventional Sm2Co17 magnet are between 22 and 32MGOe which is much higher than the former SmCo5 series. Besides two basic elements Samarium and Cobalt, different grades of Sm2Co17 vary in the content of Iron (Fe), Copper (Cu), and Zirconium (Zr).
- Country: China (Mainland)
- Business Type: 制造商
- Market:Africa
- Founded Year:
- Address:No. 80, Tawu Road, Tonglu County, Hangzhou City, Zhejiang,China.
- Contact:ZhiYu Magnetic
Other products from Hangzhou Zhiyu Magnetic Industry Technology Co., Ltd.
Relate products of Samarium Cobalt Magnet
Samarium Cobalt Magnets
Samarium cobalt block magnets (also known as smco magnet): one of the two types of rare earth magnets is a strong permanent magnet made of an alloy of samarium and cobalt. They were developed in the early 1970s. They are generally the second-strongest type of magnet made, less ...
Samarium Cobalt (SmCo) Ring Magnet D25.4xd12.7x6.35mm
Axially magnetized rare earth samarium cobalt magnet rings with dimension of 1\" (25.4mm) OD x 1/2\" (12.70mm) ID x 1/4\" (6.35mm) thick. Magnetic Performance: Br: 10.4 kGs, Hcb: 9.8 kOe, Hcj: 10.6 kOe, (BH)max: 26 MGOe. Pole Orientation: Magnetized through 1/8\", magnetic ...
