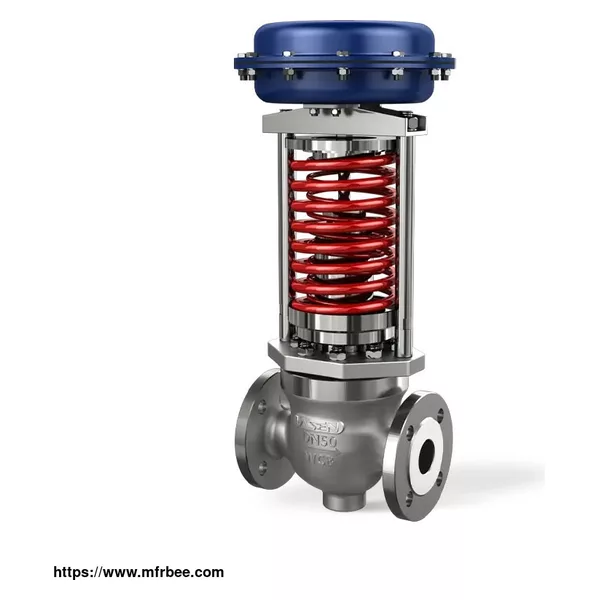

BR.W511 Series Self-Operated Regulator
Product Quick Detail
- 1
- 1
- 1
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
BR.W511 Series Self-Operated Regulator
Purpose and features:
The BR.W511 direct acting self operated pressure regulator (referred to as the pressure regulator) is a type of valve that utilizes the pressure changes of the controlled medium to drive the actuator without the need for external energy to achieve pressure regulation. It can work in situations without electricity or gas.
Pressure regulators are mainly suitable for reducing pressure and stabilizing steam, as well as pressure stabilizing devices for various gases and low viscosity liquid media.
Pressure regulators are widely used in automatic control in industrial sectors such as chemical, petrochemical, metallurgical, power plants, and textiles.
| Body size | 15～400 mm(1/2"～16") |
| Plug style | Single (double) sealing surface balance type, bellows balance type, piston balance type |
| Characteristics | Quick open 、Approximate linear |
| Body ratings |
PN16,25,40,63,100;
ANSI Class 150,300,600 |
| Connections |
Flanged(RF、MFM)
Weld ends（SW、BW） |
| Flange standard |
HG/T20592
HG/T20615 ANSI B16.5 |
| Body & Bonnet Material | WCB CF8 CF8M CF3 CF3M…… |
| Valve Trim materials |
304;316；316L
304+R.PTFE;316+R.PTFE；316L+R.PTFE 304+Stellite;316+Stellite；316L+Stellite |
| Bonnet Type |
Standard type -29～+200℃
High temperature type +200～+420℃ |
| Structural style |
Single Seated
Cage Control Valve Double seat type Multistage step-down type |
| Packing |
V-PTFE
Flexible Graphite |
| Note | When the valve is metal hard sealed and the seat leakage rate is class ⅴ, please indicate in the contract. |
