High Pressure PTA Balloon Catheter

OVERVIEW

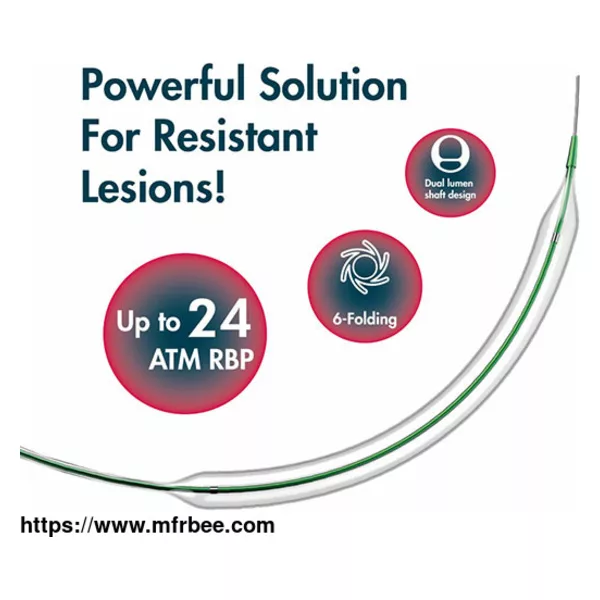

High Pressure PTA Balloon Catheter

Deliver great outcomes for both AV and vascular access patency

The Percutaneous Transluminal Angioplasty HP PTA Balloon Catheter are non-reusable semi-compliant coaxial design catheters consisting of an over-the-wire (OTW) catheter with a balloon mounted on its distal tip.

PRODUCT FEATURES

High Pressure Balloon Catheters

ZENFLOW-35

Balloon Materials (Nylon+Pebax)

Permit thinner wall thickness with higher RBP and lower compliance

Advanced balloon folding technology

Provides consistent low profiles and excellent re-wrap

SOFT AND LOW ENTRY PROFILE TIP

High radial strength and good fracture resistance

To maximize vessel patency by decreasing tissue prolapse

GOLD/TANTALUM MARKER

Creates easy access to the most complex anatomy

DUAL LUMEN SHAFT DESIGN

Provides short deflation time and good push-ability

One-handed stent deployment

THE BROADEST WORKING RANGE

Balloon Diameter: 3-10mm

Balloon Length: 20-200mm

Shafts: 40, 75, 135cm

TECHNOLOGY DATA

Catheter Type: Over-The-Wire(OTW)

Guidewire: 0.025"

Balloon folding: 3-fold[∅3mm]/6-fold[∅4-10mm]

Coating: Hydrophilic coating

Balloon Markers: 2

ORDERING INFORMATION

Catheter Length Balloon Diameter Balloon Length Sheath NP RBP

40cm 75cm 135cm (mm) (mm) (F) ATM kPa ATM kPa

ZWH040030002035B ZWH075030002035B ZWH135030002035B 3 20 5 10 1013 24 2432

ZWH040030003035B ZWH075030003035B ZWH135030003035B 3 30 5 10 1013 24 2432

ZWH040030004035B ZWH075030004035B ZWH135030004035B 3 40 5 10 1013 24 2432

ZWH040030006035B ZWH075030006035B ZWH135030006035B 3 60 5 10 1013 24 2432

ZWH040030008035B ZWH075030008035B ZWH135030008035B 3 80 5 10 1013 24 2432

ZWH040030010035B ZWH075030010035B ZWH135030010035B 3 100 5 10 1013 24 2432

— ZWH075030012035B ZWH135030012035B 3 120 5 10 1013 24 2432

一 ZWH075030015035B ZWH135030015035B 3 150 5 10 1013 24 2432

— ZWH075030018035B ZWH135030018035B 3 180 5 10 1013 24 2432

— ZWH075030020035B ZWH135030020035B 3 200 5 10 1013 24 2432

ZWH040040002035B ZWH075040002035B ZWH135040002035B 4 20 5 10 1013 24 2432

ZWH040040003035B ZWH075040003035B ZWH135040003035B 4 30 5 10 1013 24 2432

ZWH040040004035B ZWH075040004035B ZWH135040004035B 4 40 5 10 1013 24 2432

ZWH040040006035B ZWH075040006035B ZWH135040006035B 4 60 5 10 1013 24 2432

ZWH040040008035B ZWH075040008035B ZWH135040008035B 4 80 5 10 1013 24 2432

ZWH040040010035B ZWH075040010035B ZWH135040010035B 4 100 5 10 1013 24 2432

— ZWH075040012035B ZWH135040012035B 4 120 5 10 1013 24 2432

— ZWH075040015035B ZWH135040015035B 4 150 5 10 1013 24 2432

— ZWH075040018035B ZWH135040018035B 4 180 5 10 1013 24 2432

— ZWH075040020035B ZWH135040020035B 4 200 5 10 1013 24 2432

ZWH040050002035B ZWH075050002035B ZWH135050002035B 5 20 6 10 1013 24 2432

ZWH040050003035B ZWH075050003035B ZWH135050003035B 5 30 6 10 1013 24 2432

ZWH040050004035B ZWH075050004035B ZWH135050004035B 5 40 6 10 1013 24 2432

ZWH040050006035B ZWH075050006035B ZWH135050006035B 5 60 6 10 1013 24 2432

ZWH040050008035B ZWH075050008035B ZWH135050008035B 5 80 6 10 1013 24 2432

ZWH040050010035B ZWH075050010035B ZWH135050010035B 5 100 6 10 1013 24 2432

ZWH040050012035B ZWH075050012035B ZWH135050012035B 5 120 6 10 1013 24 2432

— ZWH075050015035B ZWH135050015035B 5 150 6 10 1013 24 2432

— ZWH075050018035B ZWH135050018035B 5 180 6 10 1013 24 2432

— ZWH075050020035B ZWH135050020035B 5 200 6 10 1013 24 2432

ZWH040060002035B ZWH075060002035B ZWH135060002035B 6 20 6 10 1013 24 2432

ZWH040060003035B ZWH075060003035B ZWH135060003035B 6 30 6 10 1013 24 2432

ZWH040060004035B ZWH075060004035B ZWH135060004035B 6 40 6 10 1013 24 2432

ZWH040060006035B ZWH075060006035B ZWH135060006035B 6 60 6 10 1013 24 2432

ZWH040060008035B ZWH075060008035B ZWH135060008035B 6 80 6 10 1013 24 2432

ZWH040060010035B ZWH075060010035B ZWH135060010035B 6 100 6 10 1013 24 2432

ZWH040060012035B ZWH075060012035B ZWH135060012035B 6 120 6 10 1013 22 2229

— ZWH075060015035B ZWH135060015035B 6 150 6 10 1013 22 2229

— ZWH075060018035B ZWH135060018035B 6 180 6 10 1013 22 2229

— ZWH075060020035B ZWH135060020035B 6 200 6 10 1013 22 2229

ZWH040070002035B ZWH075070002035B ZWH135070002035B 7 20 6 10 1013 20 2027

ZWH040070003035B ZWH075070003035B ZWH135070003035B 7 30 6 10 1013 20 2027

ZWH040070004035B ZWH075070004035B ZWH135070004035B 7 40 6 10 1013 20 2027

ZWH040070006035B ZWH075070006035B ZWH135070006035B 7 60 6 10 1013 20 2027

ZWH040070008035B ZWH075070008035B ZWH135070008035B 7 80 6 10 1013 20 2027

ZWH040070010035B ZWH075070010035B ZWH135070010035B 7 100 6 10 1013 20 2027

— ZWH075070012035B ZWH135070012035B 7 120 6 10 1013 18 1824

— ZWH075070015035B ZWH135070015035B 7 150 6 10 1013 18 1824

— ZWH075070018035B ZWH135070018035B 7 180 6 10 1013 18 1824

— ZWH075070020035B ZWH135070020035B 7 200 6 10 1013 18 1824

ZWH040080002035B ZWH075080002035B ZWH135080002035B 8 20 7 10 1013 20 2027

ZWH040080003035B ZWH075080003035B ZWH135080003035B 8 30 7 10 1013 20 2027

ZWH040080004035B ZWH075080004035B ZWH135080004035B 8 40 7 10 1013 20 2027

ZWH040080006035B ZWH075080006035B ZWH135080006035B 8 60 7 10 1013 20 2027

ZWH040080008035B ZWH075080008035B ZWH135080008035B 8 80 7 10 1013 20 2027

ZWH040080010035B ZWH075080010035B ZWH135080010035B 8 100 7 10 1013 20 2027

— ZWH075080012035B ZWH135080012035B 8 120 7 10 1013 18 1824

一 ZWH075080015035B ZWH135080015035B 8 150 7 10 1013 18 1824

— ZWH075080018035B ZWH135080018035B 8 180 7 10 1013 18 1824

— ZWH075080020035B ZWH135080020035B 8 200 7 10 1013 18 1824

ZWH040090002035B ZWH075090002035B ZWH135090002035B 9 20 7 8 811 18 1824

ZWH040090003035B ZWH075090003035B ZWH135090003035B 9 30 7 8 811 18 1824

ZWH040090004035B ZWH075090004035B ZWH135090004035B 9 40 7 8 811 18 1824

ZWH040090006035B ZWH075090006035B ZWH135090006035B 9 60 7 8 811 18 1824

ZWH040090008035B ZWH075090008035B ZWH135090008035B 9 80 7 8 811 18 1824

ZWH040100002035B ZWH075100002035B ZWH135100002035B 10 20 7 8 811 14 1419

ZWH040100003035B ZWH075100003035B ZWH135100003035B 10 30 7 8 811 14 1419

ZWH040100004035B ZWH075100004035B ZWH135100004035B 10 40 7 8 811 18 1419

ZWH040100006035B ZWH075100006035B ZWH135100006035B 10 60 7 8 811 18 1419

ZWH040100008035B ZWH075100008035B ZWH135100008035B 10 80 7 8 811 18 1419

INDICATIONS

High Pressure PTA Balloon Catheter

The HP PTA Balloon Catheter is indicated for percutaneous transluminal angioplasty (PTA) in the peripheral vasculature, including iliac, femoral, popliteal, tibial, peroneal, subclavian and for the treatment of obstructive lesions of native or synthetic arteriovenous dialysis fistulae.
