CWW-N150 Window Wall

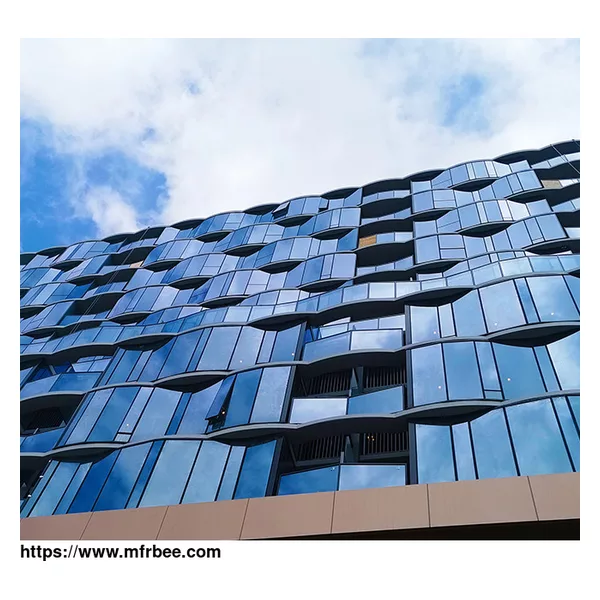

Glass wall with window system CWW-N15 is similar to unitized curtain wall system, but are generally less sophisticated. These glass window wall systems are common on small and medium sized buildings. Like curtain walls, glass window wall panels are largely prefabricated off-site (commonly in China) and shipped to site. They are normally installed sequentially, but installation can potentially take place over a number of floor at once. Generally window wall panels are installed between each single floor(it is supported by the slab below and above), and more flexible than unitized curtain wall.

Overview of CWW-N150 Window Wall

System： Window Wall(Non Thermal Break)

Model No.: CWW-N150

Material: Aluminum Alloy/Glass/Aluminum Sheet/Aluminum Composite Panel/Galvanized Sheet

Glass Type: Tempered/Float/Laminated/DGU/Ceramic Fritted/LowE/Tinted/Reflective/Heat Soak

Cooperated Glass Brand: Vitro(Formerly PPG)/Pilkington/Xinyi(SYG)/Yaopi(SYP)/Fuyao/Southglass(SG)/Kibing/CNG/TaiwanGlass

Surface Treatment: Powder Coating/PVDF/Anodized/Electrophoresis/Wooden Grain

Profile Brand: 6063-T5/6063-T6

Themral Profile: Non-Thermal Break

Standards: In Complianca With ASTM/AS/NZS/AAMA/NFRC/EN/BSI/ISO

Application: Residential Apartment,Villa/Commercial Hotel,Mall,Office,Public Organization

System Customziation： Available

Data of CWW-N150 Window Wall

Testing Data of CWW-N150 Window Wall

Test Pressure Results

Preloading(Clause 8.2.2 of AS/NZS4284:2008） +2.58kpa No separation, plastic deformations or deleterious was observed

-2.58kpa

Preliminary Water Penetration Test under Static Pressure (Clause 8.2.3 of AS/NZS 4284:2008) +774kPa No water leakage was observed.

Preliminary Water Penetration Test under Cyclic Pressure (Clause 8.2.3 of AS/NZS 4284:2008) 387-774-387 (Pa) No water leakage was observed.

516-1032-516 (Pa)

774-1548-774 (Pa)

Structural Test at Serviceability Limit State Wind Pressure (Wsls)(Clause 8.3 of AS/NZS 4284:2008) +2.58kpa During the structural test at SLS wind pressure, the deflections of all related members were within the allowable deflection limits.

-2.58kpa

Operating force test (AS 2047-2014) -- The operating force was within the allowable value.

Air Infiltration Test (Clause 8.4 of AS/NZS 4284:2008) +/-150Pa The rate of air leakage of the specimen was within the allowable values.

Water Penetration Test under Static Water Penetration Test under Static 4284:2008) +774Pa No water leakage was observed.

Water Penetration Test under Cyclic Pressure (Clause 8.6 of AS/NZS 4284:2008) 387-774-387 (Pa) No water leakage was observed.

516-1032-516 (Pa)

774-1548-774 (Pa)

Structural ProofTest at Ultimate Limit State Wind Pressure (Wuls) (Clause 8.8 of AS/NZS 4284:2008) +4.00kpa No collapse of the test specimen was observed under the specified pressure.

-4.00kpa

Thermal Data of CWW-N150 Window Wall

NFRC procedures NFRC100SB, NFRC200-2010 and NFRC500-2010

Software tools: THERM 7.4.3.0 and WINDOW 7.4.6.0

Configuration 6mm LB13-45#2HS+12AR+6mm Clear HST

Panel Dimension 1700mm Wide x 2750mm High

Frame Painted Aluminum

Panel U-value 3.185W/m2k

Visible Light Transmission 0.301

Condensation Resistant 34.1

Frame Data of CWW-N150 Window Wall

Parts Location Frame Area/m2 Edge Area/m2 U-Value(Frame)

W/m2k U-Value(Edge)

W/m2k

Left Header 0.0650 0.0450 11.7187 1.8571

Left Jamb 0.2140 0.1610 11.6815 1.8544

Right Header 0.0650 0.0450 11.7187 1.8571

Mullion 0.1820 0.3150 6.2420 1.4047

Right Jamb 0.2140 0.1610 11.6815 1.8544

Left sill 0.0530 0.0450 14.7773 1.9316

Right sill 0.0530 0.0450 14.7773 1.9316

Glass Data of CWW-N150 Window Wall

Glass Data: 6mm LB13-45#2HS+12AR+6mm Clear HST

Visible Light SHGC SC NFRC U-value

W/m3k(Argon) STC

T% R-out% R-in% Winter Summer

40 20 13 0.26 1.43 1.36 36

Benefit of CWW-N150 Window Wall

Flexible for different buildings

Reduction of installation difficulty

Cost efficient

Shorter project schedule

A expanded view for daily routine

Stable themral performance

Minimum after sales service & maintaining

Increased comfort level

Configuration of CWW-N150 Window Wall

Recommended CAS Facade Products

Our products are designed to snap together perfectly, organically or with the help of couplers. This ensures a streamline design throughout your project. Below is a list of compatible products.

As one of facade engineering firms, we can offer sorts of related products for sale, if you have needs, please contact us.
