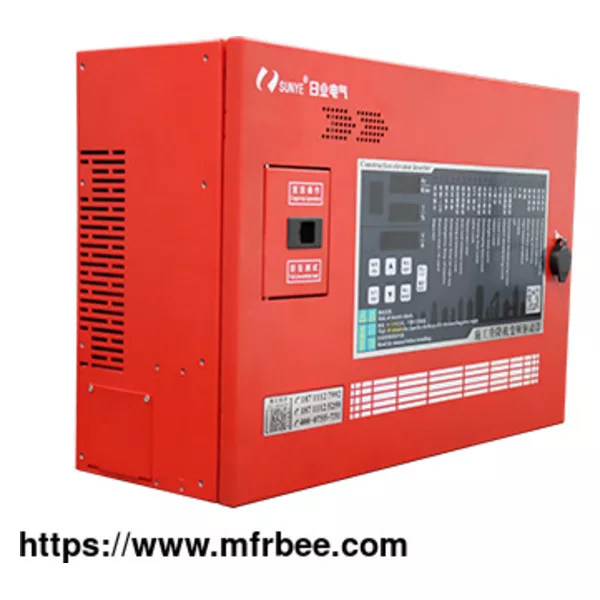

380V/0.4-800kW Construction All-in-one Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Simple installation: without changing the original frequency electrical box, only the frequency converter needs to be added and the resistance box can complete the transformation work. Good
anti-vibration performance: for the mechanical characteristics of the lift in operation, the whole machine is tested for anti-vibration by the vibration test bench at the factory. No need to set
parameters: correctly connected to the motor line and control line, the machine can be turned on and work normally. Good comfort: no overshoot and weightlessness at start-up, smooth stopping,
precise leveling and no bottoming out.
Specification of 380V/0.4-800kW Construction All-in-one Machine
Item Specifications
Main control
functions Maximum
frequency Vector control: 0~600Hz
VF control:0~1200Hz
Carrier Frequency 1k ~ 15kHz; the carrier frequency will be automatically
adjusted according to the load characteristics.
Input frequency
resolution Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.1%
Control mode Open loop vector control ;
V/F control.
Start-up torque Mode G machine: 0.5Hz/180% (open loop vector control)
Mode P machine: 0.5Hz/120% (Open loop vector control)
Speed adjustment
range 1：200（Open loop Vector flux control）
Main control
functions Stable speed
Precision Open loop Vector flux control：≤±0.5% (rated synchronous
speed)
Stabilization of
speed control Open loop Vector flux control：≤±0.3% (rated synchronous
speed)
Torque response ≤40ms(Open magnetic flux vector control)
Overload capacity Mode G machine: 150% rated current 60s; 180% rated current 5s
Mode P machine: 130% rated current 60s; 150% rated current 5s
Torque boost Automatic torque boost; manual torque boost 0.1% to 30.0%
V/F curve Linear V/F, Multi-point V/F, and Square V/F
Speed-up and Straight line or S curve speed-up and speed-down mode;
four kinds of speed-up and speed-down time;
Speed-down curve Speed-up and speed-down time ranges from 0.0s
to 3000.0s
DC brake DC brake frequency: 0.00Hz ~ maximum frequency; brake time: 0.0s ~ 36.0s, and brake current value: 0.0% to 100.0%.
Jog control Jog frequency range:0.00Hz ~ 50.00Hz;
Jog speed-up/speed-down time: 0.0s ~ 3000.0s.
Simple PLC and
multi-speed running It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.
Built-in PID It is easy to realize process-controlled close loop control system.
（AVR）Automatic
voltage regulation It can keep constant output voltage automatically in case of change of mains voltage.
Torque limit and
control "Shovel" characteristics, automatic limit on the torque on running time, preventing frequent over-current trip; closed loop vector mode can realize the torque control
Customized functions Peripherals
self-detection upon
power-on It can conduct safety detections on the peripherals upon power-on, including earth and short circuit detections.
Shared DC bus
function It can realize the function that multiple inverters share the DC bus.
JOG key Programmable key: Select the forward and reverse rotations/jog operation command.
Traverse frequency
control Multiple triangular-wave frequency control function.
Fast current limit
function With fast current limit algorithm built in to reduce the probability of over-current alarm; to improve the anti-jamming capacity of the whole machine.
Timed control Timing control function: Setting time range from 0h to 65535h.
Keyboard extension
line standardization Customers can use standard cable to extend the keyboard
Operation
function Running command
channel Three types of channels: operation panel given, control terminal given and serial communication port given. These channels can be switched in various ways.
Frequency source Ten types of frequency sources in total: digital given, analog voltage given, analog current given, pulse given, and serial port given. It can be switched in various
ways.
Auxiliary frequency
source Ten types of auxiliary frequency sources in total. It can implement micro tuning and synthesis of auxiliary frequency.
Input terminal Seven digital input terminals, and nine terminals in maximum
(AI1, AI2 can be used as DI terminals), it has compatibility to
PNP or NPN input method.
Two analog input terminals, in which AI1 only be used for
voltage input, and AI2 can be used as voltage or current
input. (if expanded- input or output terminal function is
needed, please use HIC580 series.)
Output terminal One digital output terminal (bipolar output)
Two relay output terminal
Two analog output terminals, with optional 0/4mA to 20mA
or 0/2V to 10V. It can realize the output of set frequency,
output frequency and rotation speed etc.
Display and Keyboard
Operate LED display Display parameter
LCD display Selective parts, Chinese/English to suggest the operation
content
LCD Parameter copy Use LCD parameter special copy keyboard can copy the
parameter quickly
Key lock and
function choose Lock part of the keyboard or the whole keyboard, definite the
function range of some keys to avoid mis-operation.
Protection
and select
accessories protection function Short circuit detective of power-on motor, input and output
open-phase protection, over-current protection, overvoltage
protection, under-voltage protection, over-heat protection,
over-load protection etc.
Selective accessories LCD operation panel, brake group etc.
Environment Suitable place Indoor environment which is against from direct sunlight,
dust, corrosive gas, combustible gas, oil mist, vapor, water
drop and salt.
Altitude Less than 1000m
Ambient
Temperature -10℃ ~ +50℃ (derating is required if the natural temperature
range is 40℃ ~ 50℃)
Humidity Less than 95%RH, no condensing water drops
Vibration Less than 5.9m/ s2 (0.6g)
Storage temperature -20℃ ~ +60℃
Class of pollution 2
Hiconics is a variable frequency drive manufacturer, we provide variable frequency drive china, vfd single line diagram, vfd device, etc. Want to know more, contact us.
