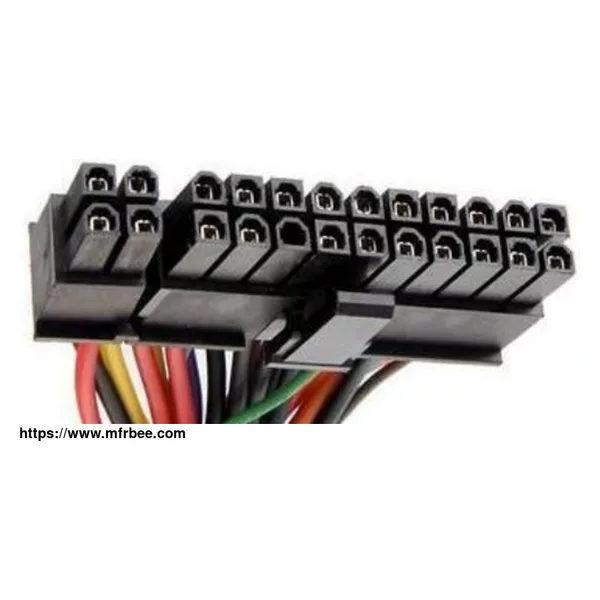

Product name: Computer motherboard 24-pin 14-pin adapter cable, one end is connected to general ATX power supply 24P, the other end is connected to Lenovo motherboard 14P.
|
|
Computer Motherboard Cables Features
|
Power Supply Specifications
|
According to the power supply specifications defined by Intel, the pc motherboard audio cables used by all power supply manufacturers must be standardized. The color and usage of the mother board
wiring are as follows.
|
|
Red
|
+5V signal power supply for the circuit of the mainboard, memory modules, CD/DVD drives, hard disks, and other devices.
|
|
Yellow
|
+12V CPU and graphics card power supply. Power standard drive circuits, such as CD - ROM, hard disk motors.
|
|
Orange
|
+3.3V is now used to power SATA hard disks, but will be used for other purposes in the future.
|
|
Purple
|
+5V (USB) USB device power supply, support USB keyboard and mouse startup function (power supply after shutdown)
|
|
Black
|
Ground wire (0V) is a necessary part of the power supply loop
|
|
Green
|
PS-ON startup signal cable (when it is short-connected with the ground cable, the power will be started)
|
|
Gray
|
Power Good monitoring line, this PC wiring harness connects the motherboard and Power supply, play the role of signal feedback
|
|
PC Motherboard Power Cables Specification
|
Product Name: Computer motherboard 24 pin 14 pin adapter cable.
|
|
The total length of our power supply wires to motherboard is about 15CM, one end is connected to the general ATX power supply 24P, the other end is connected to lenovo motherboard 14P. It is
suitable to use Lenovo Q77/B75/A75/Q75 motherboard.
|
|
Material Description: Standard 18AWG electronic wire, green black 24PIN female head, 14PIN male head.
|
|
Custom motherboard cables are also available.
|
|
As a custom cable manufacturer, we can offer sorts of bespoke cable for sale, if you have needs, please contact us.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
