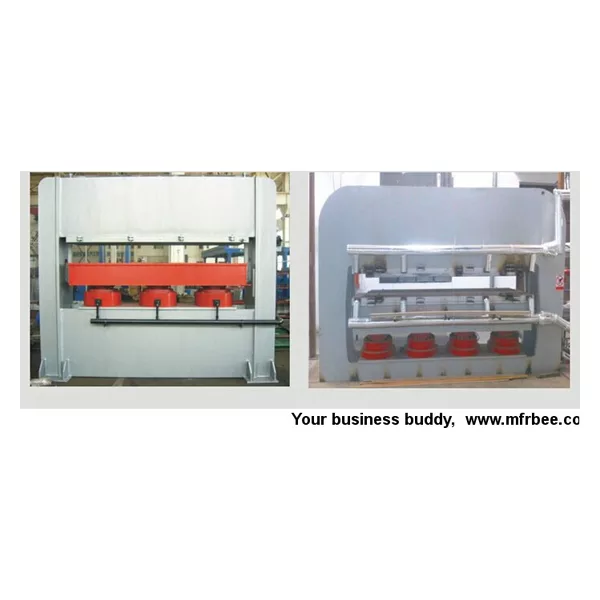

Profile Molding Hot Press
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
The Profile molding hot press is mainly used for making molded door profile and skirting.
For example, the 600T profile molding hot press is used for producing wood molding and door frame line.
Models and technical parameter for reference:
Model 600T 700T 800T 900T
Max. pressure(kN) 6000 7000 8000 9000
Hot plate width(mm) 400~900
Hot plate length(mm) 2600
Hot plate thickness(mm) 60*2
Operating stroke(mm) 300
Closing time(s) 5-8
Main oil cylinder(diameter and quantity(mm×pcs) Φ320×3 Φ340×3 Φ340×3 Φ360×4
Daylight opening(mm) 300~400
Machine size(m) 3.5×(0.45~0.95)×2.8
