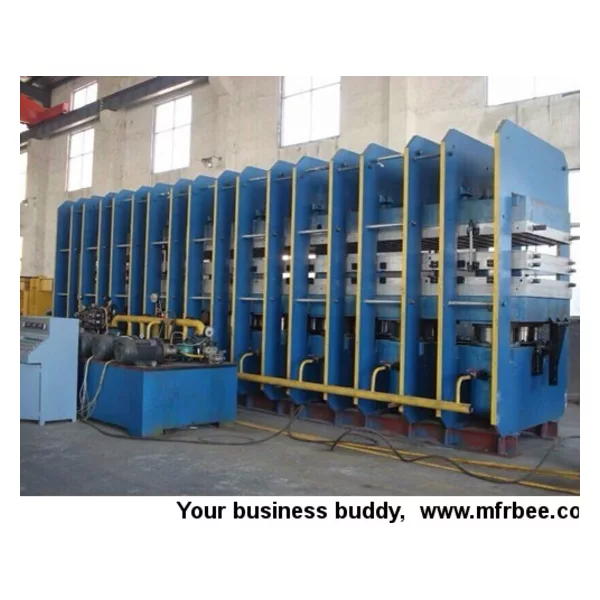

Platen press line
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Function: The platen press line is used for curing the steel (fabric) cord conveyor belt.
Performance introduction:
1. It is controlled by PLC and touch screen for manual control and auto control. The auto control can realize auto works such as mould closing, air exhausting, temperature control, vulcanization timing, alarming and discharging load when mould opening etc. The touch screen will timely show the temperature of the heating platen at each heating zone.
2. The hydraulic cylinder is made of ZG270-500. The ram is made of closing-grained chilled alloy cast iron by casting and fine grinding. The hydraulic cylinder is well sealed by YX shape sealing ring.
3. The guard edge of heating platen adopts hydraulic prop up iron, under the function of four oil cylinder, the iron cushion at two sides of the lower platen will advance and retreat at the same time. There are anti-superpose iron cushion device at the two sides of platen.
4. There is a set of value group of temperature adjuster on each heating area for the platen. Under the controlling of PLC, it can guarantee the even temperature of each heating area.
5. Hydraulic system: adopt the famous brand hydraulic station from the domestic and aboard. Under the controlling of PLC, it can realize the auto mould closing, air exhausting and load discharging when opening mould.
6. The synchronous balance device of the machine: there is a synchronous axis that runs through the machine sets below the platform, gear wheels and racks are designed on the two sides of the axis, which can guarantee the horizontal lifting for the platform.
7. The guiding device for mould closing: it is designed on the two sides of the lower mat platform. There are guiding seats for the frame board and platform. The guiding seats are produced with incline and the incline distance can be adjustable by the prop up screw.
8. Mould opening booster: during the mould opening, the four oil cylinders below the platform will start working and forcibly pull down the platform, which can prevent the mould from sticking.
http://www.chinaenorkpress.com
Performance introduction:
1. It is controlled by PLC and touch screen for manual control and auto control. The auto control can realize auto works such as mould closing, air exhausting, temperature control, vulcanization timing, alarming and discharging load when mould opening etc. The touch screen will timely show the temperature of the heating platen at each heating zone.
2. The hydraulic cylinder is made of ZG270-500. The ram is made of closing-grained chilled alloy cast iron by casting and fine grinding. The hydraulic cylinder is well sealed by YX shape sealing ring.
3. The guard edge of heating platen adopts hydraulic prop up iron, under the function of four oil cylinder, the iron cushion at two sides of the lower platen will advance and retreat at the same time. There are anti-superpose iron cushion device at the two sides of platen.
4. There is a set of value group of temperature adjuster on each heating area for the platen. Under the controlling of PLC, it can guarantee the even temperature of each heating area.
5. Hydraulic system: adopt the famous brand hydraulic station from the domestic and aboard. Under the controlling of PLC, it can realize the auto mould closing, air exhausting and load discharging when opening mould.
6. The synchronous balance device of the machine: there is a synchronous axis that runs through the machine sets below the platform, gear wheels and racks are designed on the two sides of the axis, which can guarantee the horizontal lifting for the platform.
7. The guiding device for mould closing: it is designed on the two sides of the lower mat platform. There are guiding seats for the frame board and platform. The guiding seats are produced with incline and the incline distance can be adjustable by the prop up screw.
8. Mould opening booster: during the mould opening, the four oil cylinders below the platform will start working and forcibly pull down the platform, which can prevent the mould from sticking.
http://www.chinaenorkpress.com
