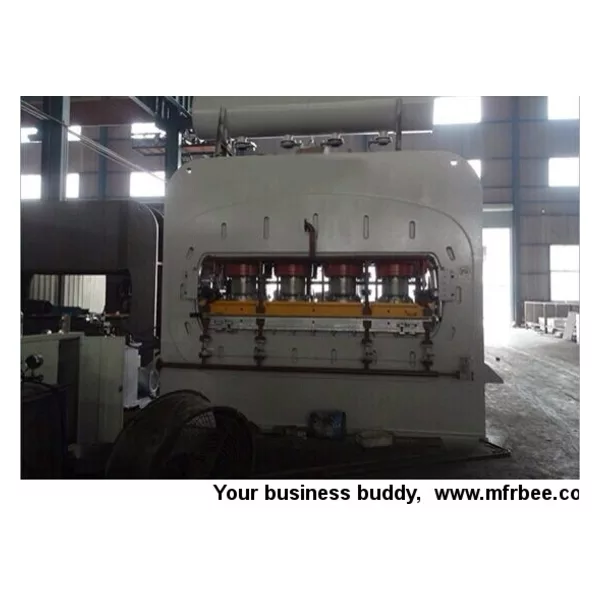

Double Side Hot Press

Double side hot press is mainly applied for two-sided decorative wood panels. Hot forming process is finished on the two sides at one time. The oil cylinder is placed at the upper end, and a board infeed conveyor is also supplied. The double side hot press is used the most widely on the market.
Double side hot press is mainly designed for wood panels with thickness of 6mm or more. It also applies for the production of decorative panels with different kinds of surface, such as glossy, matt, pitted, embossed, synchronous, etc.
Specifications:
Model: TLY114×8/12-Ⅱ
Nominal gross pressure: 12000Kn
Direction of feeding plate: Horizontal
Layer counting: 1 Layer
Distance between hot platens: 300mm
Number of hot platens: 2pcs
Dimension of hot platens: 2600×1400×140mm(up)
2600×1400×100mm(down)
Number of cylinders: 6pcs
Diameter of cylinder: Φ320mm
Stroke of cylinder: 300mm
Pressurization: ≤25Mpa
The position of cylinder: Up
Empty closing time: About 4s
Number of lift cylinder: 4pcs
Diameter of cylinder: 60mm, 30mm
Stroke of cylinder: 300mm
High pressure pump flowing: About 89L/min
Allowed pressure: ≤25Mpa
Power: 37Kw
Pressure of unit plate blank: 40Kgf/cm2
Control method: Automatic pump
Electrical appliance: Siemens
Products board size: 2440×1220
Overall size: 3490×1400×3200mm
Steel plate thickness: 40mm,35mm,20mm
