Our xlpe control cable has been used more and more in recent years, especially after it has become a special control cable for 220kV high voltage distribution devices. People's requirements for

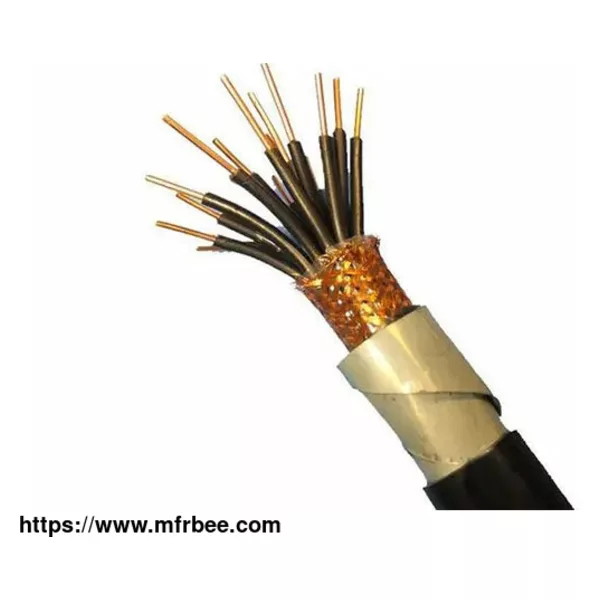

the performance of its products are increasingly high. XLPE insulated control cable is made of high quality copper conductor and XLPE insulation. It has excellent heat resistance, and the highest
working temperature can reach 90℃. Good electrical performance, good mechanical performance, excellent chemical characteristics, XLPE acid and alkali resistance, oil resistance, less harm to the
environment combustion, in line with the requirements of modern fire safety.
Specification of Xlpe Insulated Control Cable
NAME SECTION AREA(M㎡) NO.OF CORE APPLICATION SITE
Copper Conductor, XLPE Insulated and PVC Sheathed Control Cable 0.75, 1.0, 1.5, 2.5 2-16 Permanent installation indoors, in cable ditches or pipes
4, 6 2-14
10 2-10
Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Control Cable 0.75, 1.0, 1.5, 2.5 2-61 Permanent installation indoors, in cable ditches or pipes where shielding is required
4, 6 2-14
10 2-10
Copper Conductor, XLPE Insulated, Stee-tape Armoured, PVC Sheathed Control Cable 0.75, 1.0, 1.5, 2.5 7-61 Permanent installation indoors, in cable ditches,pipes or underground.Be able to withstand
stronger external mechanical force
4, 6 4-14
10 4-10
Copper Conductor, XLPE Insulated, Copper tape Screened, PVC Sheathed Control Cable 0.75, 1.0, 1.5, 2.5 7-61 Permanent installation indoors, in cable ditches or pipes where shielding is required
4, 6 4-14
10 4-10
Copper Conductor, XLPE Insulated, PVC Sheathed Flexible Control Cable 0.5-2.5 4-61 Installation indoors where flexibility and movability are required
Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Flexible Control Cable 0.5, 0.75, 1.0 4-61 Installation indoors where flexibility shielding and movability are required.
