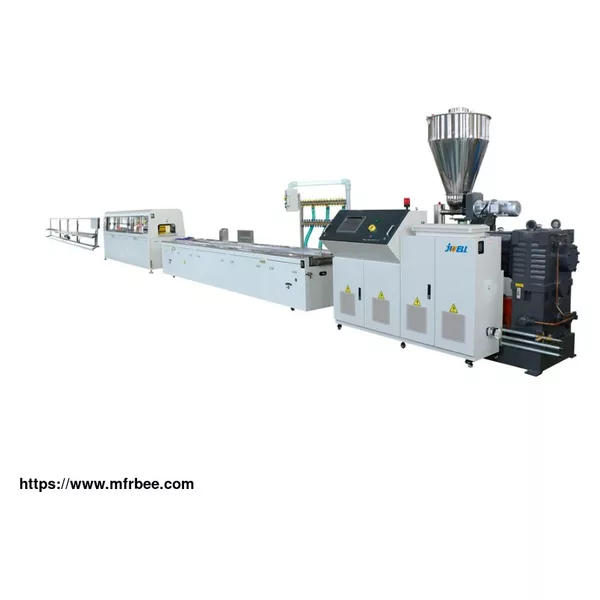

PVC Door Frame Extrusion Line

This PVC door frame extrusion line is suitable to produce door frames, window profile, wall panel, ceiling, and other PVC profiles by only easily changing different molds. We provide complete solutions from raw material to final products with over 25 years exporting experience and great PVC profile extrusion technology. Besides, we have over 500 technical engineers and professional operators who will provide sustainable and reliable service for you during the whole PVC profile production process.

Our pvc door profile extrusion machine supports single-cavity and dual-cavity production type based on imported computer control system and stable extrusion technology. The full PVC door frame production line is composed of raw material mixing, loader, feeding machine, extruder, mold, vacuum calibration machine, cooling, haul off machine, cutting and stacker.

Advantages of PVC Door Frame Extrusion Line

02.

High-performance twin screw extruder ensures good homogenization, stable capacity, excellent reliability and unparalleled product quality.

03.

We have own screw company founded in 1978 for independently research and develop various screw to meet different production requirements, also can ensures sustainable after-sales service.

04.

After simple changing the screw and mould, this PVC window profile making machine also can produce other PE PVC foam profiles, PVC window profile, PVC wall panel and ceiling.

Specification of PVC Door Frame Extrusion Line

High speed main technical parameter

Type YF240 YF240 YF240A

Max.width of product (mm) 240 240 150*2

Extruder model SJP75/28 SJP93/30 SJP110/28

Max.extrusion capacity (kg/h) 150-250 250-400 400-500

Extruder power (kW) 45 55 90

Cooling water (m3/h) 7 8 10

Compressed air (m3/min) 0.6 0.6 0.8

Classic type main technical parameter

Type YF108 YF240 YF240A YF300 YF400

Max.width of product (mm) 108 240 150*2 300 400

Extruder model SJZ55/110 SJZ65/132 SJZ65/132 SJZ65/132 SJZ80/156

Max.extrusion capacity (kg/h) 150 250 250 250 450

Extruder power (kW) 22 37 37 37 55

Cooling water (m3/h) 7 8 8 8 10

Compressed air (m3/min) 0.6 0.6 0.8 0.6 0.6

Find More About PVC Door Frame Extrusion Line

Extruder

Special designed screw guarantees perfect plasticization, more durable.

High precision and wear-resisting gearbox with advantages of high efficiency transmission and lower noise.

Imported main motor, famous brand inverter and accurate electrical components.

Calibration Unit

Could be moved by motor or by hand.

High pressure vacuum system keeps great product shape.

Haul Off

Two tractors driven by two independent motors.

Speed controlled by imported inverter.

Cutter

Cutting knife movement and saw working controlled by pneumatic cylinder and PLC program system.

Independent operation panel.

PVC Door Frame Extrusion Line Video

The Application of PVC Door Frame Extrusion Line

PVC door profiles have wide application in our life, especially on house decorative materials with various designs.

For more information about pvc pipe extrusion line, please feel free to contact us!
