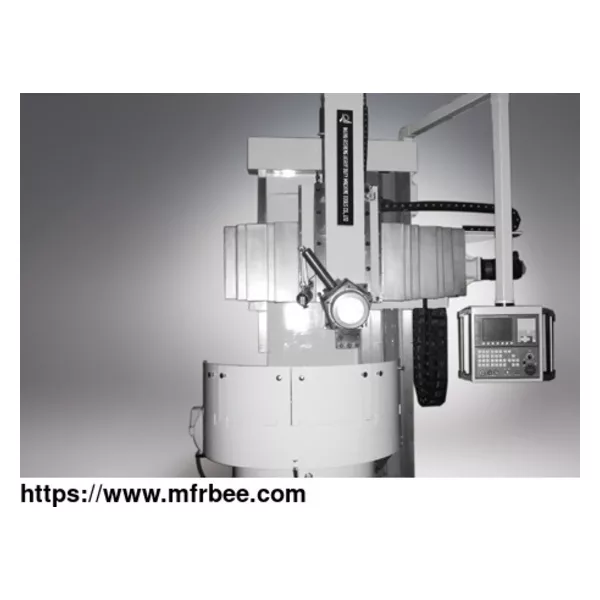

Single Column Vertical Lathe
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Conventional Single Column Vertical Lathe Servo motor and gearbox directly drive the Ballscrew for X&Z axis feeding. It makes the machine better accuracy and fast-moving. The machine can equip
a handheld unit for easy control. Full cover is optional together with a chip conveyor and coolant system.
Sealion is one of the most experienced single column vertical lathe manufacturers in China. With years of experience in the industry, Sealion has gained a reputation for producing high-quality and
reliable machines that meet the needs of various industrial applications. We specialize in providing high-quality cnc single column vertical lathe machine. If you are in need, please feel free to
contact us!
Features of Conventional Single Column Vertical Lathe
The single column conventional vertical lathe is suitable for rough or fine machining of auto, bearing, wind power, motor and water pump etc.
The base and column use one-piece high quality castings.
X&Z are using brand linear guideway.
Main transmission is driven by frequency or servo motor, simple structure and high transmission efficiency.
Servo motor and gearbox directly drive the Ballscrew for X&Z axis feeding. It can reach high accuracy and fast moving.
Full cover is your optional together with chip conveyor and coolant system.
Handheld Unit.
General Description of Conventional Single Column Vertical Lathe
The conventional single column vertical lathe is a compact, high precision, heavy-duty machine. The rigid vertical column and base are quality castings, heavily ribbed for reduced thermal
distortion and vibration dampening. It is designed for turning of small or medium-size workpieces.
The X and Z axis guideways are completely enclosed and a forced lubrication system assures high precision. The Ballscrew driving system enables rapid traverse rates and precision feeding traverse.
The precision high-class ballscrews are driven directly by the servo motors, eliminating belts or gears for high precision.
The X & Z-axis can be working with the DRO system, the operator can easily set the tools and work an easier way to finish the machining.
The single spindle lathe machine can be modified to be a 2-axis CNC control if you need it in the future.
The automatic lubrication system is standard for this single spindle automatic lathe.
Parameters of Conventional Single Column Vertical Lathe
Model No CK577 CK518 CK5110 CK5112 CK5116
Max Machining Diameter(mm) 700 860 1,000 1,250 1,600
Max Machining Height(mm) 650 750 750 1,000 1,000
Max Load on Table(Kg) 1,000 1,200 1,200 5,000 8,000
Table Diameter(mm) 600 800 900 1,010 1,400
Main Motor Power(Kw) 11 15 15 22 30
Table Rotary Speed(r/min) 38-500 20-400 20-400 6.3-300 5-250
Horizontal Travel X(mm) 420 550 550 700 915
Vertical Travel Z(mm) 600 650 650 650 800
Feeding Speed of X&Z(mm/min) 1-2,000 1-2,000 1-2,000 1-3,000 1-3,000
Position Accuracy of X&Z(mm/1000mm) +/-0.03 +/-0.03 +/-0.03 +/-0.03 +/-0.03
Size of Machine LxWxH (M) 2.0x1.8x1.8 2.2x1.9x1.9 2.4x2.1x2.4 2.5x2.3x3.2 2.5x2.3x3.5
Weight of Machine (Kg) 4,500 6,500 7,000 9,300 14,000
As one of cnc machine tool manufacturers, we can offer sorts of china machine tools for sale, if you have needs, please contact us.
