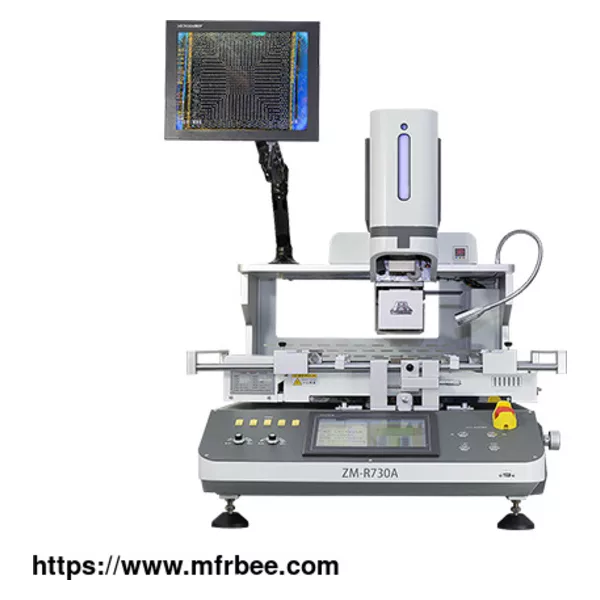

ZM-R730A Large Board BGA Rework Station

ZM R730A large board BGA rework station is a kind of Semi-Automatic Soldering Machine. The machine has stable temperature control, a large HD touch screen, HD optical alignment and intelligent control as well as removable infrared temperature zone and other advantages. As one of the most reputable and professional BGA Rework Station suppliers, Zhuomao promises to produce the best products with good quality.

Functions of R730A Large Board Semi-Automatic Soldering Machine

01 Stable Temperature Control

Three temperature zones independently control, heated by convection hot air, the height of the bottom temperature zone is adjustable, the top temperature zone has a built-in vacuum suction nozzle for chip adsorption, with negative pressure monitoring and pressure protection device.

02 Large HD Touch Screen

Large HD touch screen operation with a variety of operation modes, real-time display, and edit temperature curve, each group of temperature curve can be set to 8 segments, can store 100 groups of temperature curve, can automatically analyze the curve, read through touch screen control.

03 Removable Infrared Temperature Zone

The IR preheating zone is heated by a carbon fiber infrared tube and protected by a high-temperature resistant microcrystalline panel. It can move left and right to facilitate maintenance of large and irregular PCBA.

04 HD Optical Alignment and Intelligent Control

Equipped with automatic feeding device, using Panasonic PLC and high-precision temperature control module, high-precision K-type thermocouple, dynamic PID multi-loop closed-loop control selective reflow soldering process, the accuracy can reach ± 1 ℃. Over temperature protection alarm function, software encryption and foolproof function.

As one of the top BGA Rework Station suppliers in China, Seamark ZM is famous for its rich technical force, reliable product quality, warm service. If you want to know the BGA repair machine and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.

Specification Of R730A Large Board Semi Automatic Soldering Machine

Power Supply AC380V±10% 50/60HZ

Power 7.75KW(Max)，Top heater(1.45KW) Bottom heater (1.2KW)，IR Preheater (4.8KW), Other(0.3KW)

PCB Size 632*520mm(Max); 6*6mm(Min)

BGA Chip Size 80*80mm(Max); 3*3mm(Min)

IR Heater Size 570*435mm

Temperature Sensor 5 Pcs

Operation Method 10" HD touch panel (1080P 16:9)

Control System Panasonic PLC + Temperature control module

Display System 15" HD industrial display ( 1080P 16:9)

Alignment System 2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator

Vacuum Adsorption Automatic

Alignment Accuracy ±0.01mm

Temperature Control K-type thermocouple closed-loop control with accuracy up to ±1℃

Feeding Device Yes

Positioning V-groove with universal fixture

Dimensions L1000*W835*H960mm

Weight 130.5KG

We can offer sorts of x ray inspection machine for sale, if you have needs, please contact us.

If you want to know more sorts of automatic reballing machine, please visit our website.
