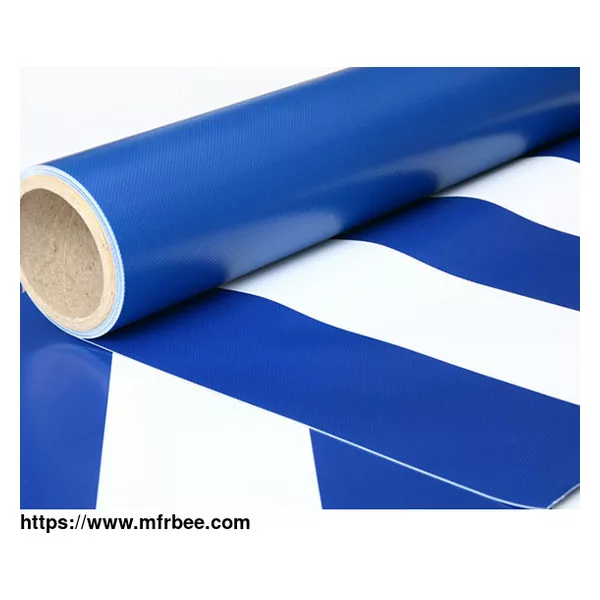

PVC Awning Tarpaulin

PVC awning tarpaulin is a PVC-coated tarpaulin with stripe printing. Weight from 400gsm to 1100gsm. The awning tarpaulin is wildly used to make awning at doors, windows, and entryways. Our using tarp as awning is totally waterproof, fire retardant, and UV resistant.

PVC Awning Tarpaulin Details

Item No: Descriptions Unit Your Product Measurements:

1 Material of the Woven Fabric DIN60001 Polyester

2 Weave DIN ISO 9354 Plain Weave

3 Count of Yarn Warp: Denier 1000

Weft: Denier 1000

4 Setting/ Number of Threads Warp: Threads/cm 20

DIN EN 1049 Weft: Threads/cm 20

5 Base Coat PVC

6 Weight of the cloth DIN EN 12127 g/m² 175

7 Total Weight DIN EN ISO-2286-2 g/m² 650

8 Tensile Strength DIN 53354 Warp: N/5cm 2800

Weft: N/5cm 2500

9 Tear Resistance DIN 53363 Warp: N 250

Weft: N 220

10 Adhesion (Coating) DIN 53357 N/5cm 100

11 Adhesion (Welding) Kg/5cm 10

PVC Awning Tarpaulin Features

01

Long Lifespan.

Heli chooses the best raw material to make our canvas tarp canopy, the lifetime of our tarp with awning bead can be more than 5 years.

02

Foldable

Heli uses Italian knife coating machines. The liquid PVC will be coated on the polyester fabric directly, even after thousands of folding, the PVC will not delaminate with the polyester fabric

03

3 Good Color Fastness

We use imported pigment, and add UV resistant additive, so the color of our awning tarpaulin will not fade at sunlight.

What Is The Maxmium Width For The Awning Tarpaulin You Can Supply?

Our maximum width for theawnings and tarps is 5.1M. For stripe printing awning tarpaulin, our maximum width is 3.2M.
