Frameless Housing.
Screen definition: 1920*1080.
Support 1080P video solution.
Full view angle.
Build with HDMI input.
With CE FCC ROHS certification.
LCD Monitor Screen Features

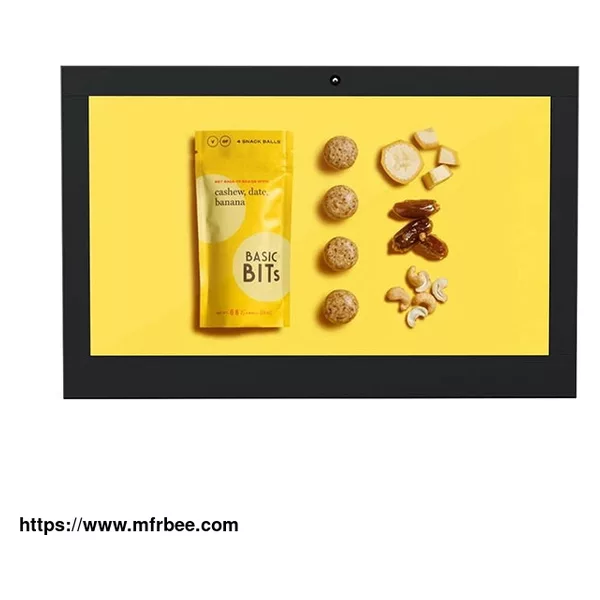

13.3'' Open Frame HD Video Screen
Open frame design with "ears" on two sides which makes it more easy to integrate into POP displays.
13.3'' Open Frame HD Video Screen
13.3 inch open frame HD LCD advertising video screen.
13.3 inch IPS full view angle panel.
Support 1920*1080 video display.
Optional function:
1.Motion sensor (auto power on / off with or without detecting moving body)
2.Push button (to press the button for playing the files in designated)
13.3'' Open Frame HD Video Screen
Build with HDMI input.
SD & USB interface for content management.
Auto Loop videos from SD card or USB after power on.
Auto copy contents from USB to SD card to update contents.
Auto power on / power off at a scheduled time.
13.3'' Open Frame HD Video Screen
Kerchan 13.3" Open Frame HD Video Screens are widely applied to a vast number of fields or issues, like retail stores, bank,meeting rooms, restaurants, supermarket, hospital, airport, and any
other commercial environments. Empowered LCD video displays are able to bring your business to the next level.
LCD Monitor Screen Tech Spec
Model SAD1330KH Shell color Standard: black
Open Frame or Enclosed Open Frame LCD Panel 13.3inch
Resolution 1920*1080 Display Ratio 16:9
Brightness 220cd/m2 Contrast 800:1
Colour 16.7M Visible Angle 178/178
Response Time 8ms Life Time(hrs) 20000 H
Visible Area 293.76*165.24mm(H×V) Outline dimension 352.47*213.27*34mm
CPU TSUMV59XU GPU /
Memory / ROM NAND flash /
Decoded Resolution Support 1080P RTC Real-time Clock Support
Switch Time Setting Support System Update U flash disk update
OS Mstar TV Nos External Interface DC IN/DC-SW/Earphone*4/HDMI in/SD/USB
Touch Panel / Camera /
Ethernet Support / Speaker /
External Port Support SD/U flash disk Input AC 100-240V
Output DC 12V/2A Power consumption(Watt) ≤8W
Standby(Watt) ≤1W Material ABS material injection process
Installation 75*75mm VESA Wall Mount Image Format JPEG/BMP/GIF/PNG
Audio Format MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio
equipment) Video Format MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC...
Control Method Remote control Default Language English
Menu Language Support Chinese, English Storage Temperature -20℃~60℃
Working Temperature -20℃~55℃ Storage Humidity 10%-75%
Working Humidity 20%-80%RH Product Weight(N.W. ) 1.2kg
Plug Types US, EU, AU, UK Optional Package Size A single package: 492*76*279mmBulk packages: 784*516*250mm
Packaging 16pcs/Package Package Weight: 25kg (Reference Only) Accessories User Guide, Instruction Book, Warranty, Desiccant
Optional 1. Motion Sensor 2. Push Button Notes /
As a LCD display manufacturer, We provide frameless lcd screen, advertising touch screen, 14 inch lcd display, advertising screen, advertising digital display, etc. For 14 inch lcd display price or
more information, please feel free to contact us!
