Frameless Housing.
Screen definition: 1920*1080.
Support 1080P video solution.
Full view angle.
Build with HDMI input.
With CE FCC ROHS certification.
LCD Monitor Screen Features

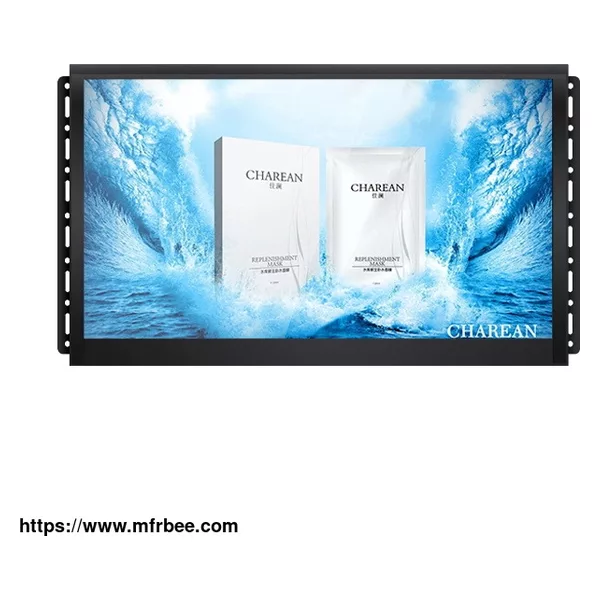

15.6'' Open Frame HD Video Screen
Open frame design and there are "ears" on each side of the monitor, which ensure it can be integrated into POP displays more easily.
15.6'' Open Frame HD Video Screen
15.6 inch open frame HD LCD advertising video screen.
15.6 inch IPS full view angle panel.
Support 1920*1080 video display.
Optional function:
1.Motion sensor (auto power on / off with or without detecting moving body)
2.Push button (to press the button for playing the files in designated)
15.6'' Open Frame HD Video Screen
15.6'' Open Frame HD Video Screen
Support content manage via USB & SD card.
Build with HDMI input.
Automatically playing videos repeatly from USB or SD card after power on.
Auto update contents by copying data from USB to SD card.
Auto power on/ off at a scheduled time.
15.6'' Open Frame HD Video Screen
Kerchan 15.6" Open Frame HD Video Screens are already being used in many areas like retail stores, restaurants, hospital, supermarket, meeting rooms, bank, airport, and any commercial environment.
LCD Monitor Screen Tech Spec
Model SAD1560KH Shell Color Standard: black
Open Frame or Enclosed Open Frame LCD Panel 15.6inch
Resolution 1920*1080 Display Ratio 16:9
Brightness 220cd/m2 Contrast 800:1
Colour 16.7M Visible Angle 178/178
Response Time 8ms Life Time(hrs) 20000 H
Visible Area 344.16*193.59mm(H×V) Outline dimension 395.65*228*28.5mm
CPU TSUMV59XU GPU /
Memory / ROM NAND flash /
Decoded Resolution Support 1080P RTC Real-time Clock Support
Switch Time Setting Support System Update U flash disk update
OS Mstar TV Nos External Interface DC IN/DC-SW/Earphone*4/HDMI in/SD/USB
Touch Panel / Camera /
Ethernet Support / Speaker /
External Port Support SD/U flash disk Input AC 100-240V
Output DC 12V/2A Power consumption(Watt) ≤11W
Standby(Watt) ≤1W Material ABS material injection process
Installation 75*75mm VESA Wall Mount Image Format JPEG/BMP/GIF/PNG
Audio Format MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio
equipment) Video Format MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC...
Control Method Remote control Default Language English
Menu Language Support Chinese, English Storage Temperature -20℃~60℃
Working Temperature -20℃~55℃ Storage Humidity 10%-75%
Working Humidity 20%-80%RH Product Weight(N.W. ) 1.5kg
Plug Types US, EU, AU, UK Optional Package Size A single package: 336*88*453mmBulk packages: 509*442*280mm
Packaging 10pcs/Package Package Weight: 18kg (Reference Only) Accessories User Guide, Instruction Book, Warranty, Desiccant
Optional 1. Motion Sensor 2. Push Button Notes /
As a LCD display factory, We provide 15 lcd panel, 16 lcd display, 15.6 lcd screen, kiosk advertising display, etc. For 15.6 inch lcd display price or more information, please feel free to contact
us!
