It is suitable for printing paper, paper board, paper cup, high-grade self-adhesive label and so on.

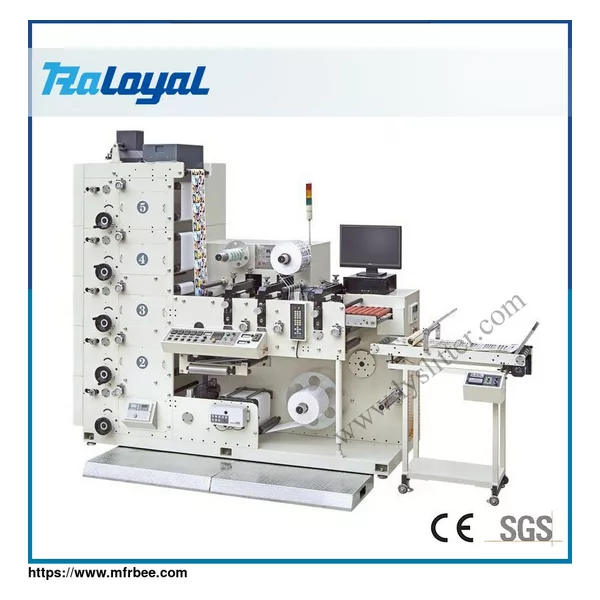

Application of flexo label printing machine
It is suitable for printing high-grade self-adhesive label, release Liner Label, food label, bottle label, and etc.
Application industry:
On the basis of the end users/applications, major market share and growth for each application, including:
Food and Beverages
Pharmaceuticals
Personal Care
Industrial Labels
Retailers and Supermarkets
Logistics
Others
Our Difference
PLC Control And Touch Screen
Automatic cylinder lifting when machine stop to avoid the material broken
High Printing Precision
Most Competitive Price
Advantage
The product has the characteristics of wide printing range, no pollution of ink, high economic benefit and fast printing speed.
1. Main motor adopts imported electric frequency speed regulation.
2. Automatic tension control is used for unwinding.
3. Ultrasonic rectification is used for web guide.
4. Part of the printing, using ceramic anilox rollers, has the characteristics of long service life, wear resistance, corrosion resistance.
5. Printing unit adopts 360 degree circumscribed alignment adjustment. The printing units can be individually joined or loosened so that other printing units continue to print.
6. Each printing unit is equipped with infrared drying device.
7. Machine with die cutting function.
8. Automatic metering.
9. Parking roller can be automatically disengaged, and low speed dynamic convey to prevent dry ink.
10. Rolls for paper, printing, automatic infrared drying, die cutting and rewinding finished once.
Technical parameter:
1 Machine model RY
2 Printing speed 65-100m/min
3 Printing color 1-9
4 Paper max width 320mm/450mm/560mm/650mm/850mm
5 Max printing width 310mm
6 Max unwinding diameter 600mm (1000mm as option)
7 Max rewinding diameter 600mm (1000mm as option)
8 Printing perimeter 190-600mm
9 Precision ±0.1mm
As one of slitter manufacturers, we can offer sorts of Raloyal slitter for sale, if you have needs, please contact us.
