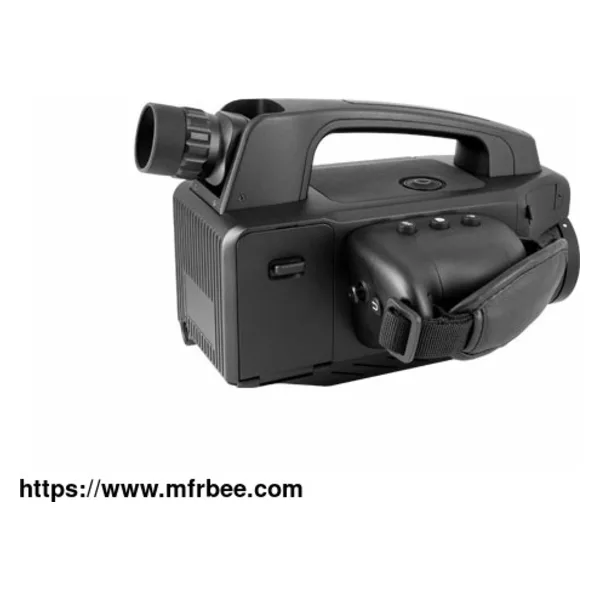

G330 VOCs Gas Thermal Imaging Camera

Overview of G330 VOCs Gas Optical Infrared Thermal Imaging Camera

VOCs gas detection camera is a non-contact device, it can quickly scan VOCs natural gas pipelines and equipment, real-time and intuitively locate the VOCs gas leak points and accurately measure the temperature by thermal images, so as to achieve VOCs natural gas long-distance rapid detection of pipelines and equipment.

Features of G330 Gas Thermal Imaging Detector for VOCs

High sensitivity cooled detector, sensitivity ≤0.01℃

High sensitivity mode Small gas leakage can be detected

It can be used for VOCS gas leak detection thermal imaging and thermal temperature measurement

Pictures and videos are stored in SD card directly

It is small in size and weighs only 2.8 kg

Intelligent operation

Explosion-proof: Ex ic nC op is ⅡC T4 Gc

Technical Specifications of G330 VOCs Continuous Gas Leak Detection Camera

Item G330

Detector Data

Cooled detector 320 x 256

Pixel pitch 30μm

Spectral range 3.1~3.5μm

Gas sensitivity ≤0.4g/hr(CH4, Room temperature)

Lens Data

FOV / Focal Length 14° x 11.2° /39mm

Focus Manual/Motor/Auto

Image Performance

LCD HD 5.0"

Amplification 1~10X Digital zoom

Eyepiece 1024*768

Palette Various colors available (iron red, black hot and white hot, etc.)

Contrast/Brightness Auto/Manual

Applications of G330 Gas Detector for VOCs

Ecological Environment Law Enforcement Team, City (County) Motor Vehicle Exhaust Pollution

Monitoring Center, Safety Supervision Bureau, Fire Bureau, Maritime Safety Administration, LDAR Testing Service Company

Offshore oil platform, oil refinery, refineries, gas station, chemical treatment plant, hazardous chemicals parking lot and hazardous chemicals storage tank area

Natural gas enterprises, natural gas stations, natural gas well sites, natural gas storage facilities, natural gas transmission pipelines and natural gas power plants

Biogas power plants, pharmaceutical enterprises, pesticide plants, coal chemical plants

Now the price of infrared camera leak detection is reasonable, if you have needs, please contact us.
