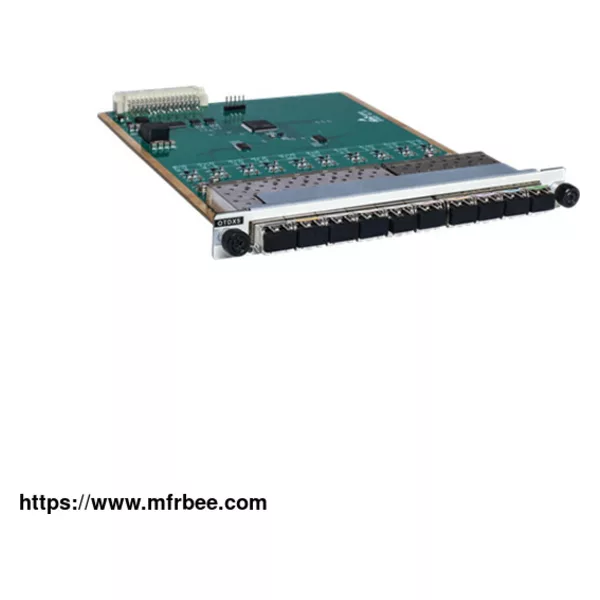

5x10G Transponder
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
10G OTU service card launched by Sintai Communication Co., Ltd. supports four types of service access with 42M~11.3G rates.
Its main function is to finish the 3R regeneration of any 5-channel signals under any protocol within the rate of 1.25 Gbit/s~11.3 Gbit/s to be accessed, and then convert them to optical signals of
a standard DWDM wavelength or standard CWDM wavelength, so that the multiplexing unit can conduct WDM for optical signals of different wavelengths and also achieve the inverse process of the above
process.
It's applicable to the wavelength division transmission solution for any access of services with the rate of 11.3G or below.
10 SFP+ C/DWDM Transponder Specification
Function Note
Card type 10G OTU-3R 10G OTU-2R
interface
Client-side interface: 5 SFP+ hot-pluggable, compatible with SFP
WDM-side interface: 5 SFP+ hot-pluggable, compatible with SFP
Line mode Supports transparent transmission of any type of service in four 42M~11.3G rate ranges, and converts four service optical signals into four WDM standard wavelength optical signals.
Relay mode Support 42M~11.3G wavelength electrical relay.
Support service type GE, 10GE
1/2/4/8/10G FC
STM-16/64
CPRI-2/3/6/7 FE, GE, 10GE
1/2/4/8/10G FC
STM-1/4/16/64, OTU1/OTU2/OTU2e
CPRI-1~8, 42M~11.3G Any
WDM technology
Support CWDM: 18 waves
Support DWDM: C band 50GHz 96 waves
Occupied slot number Support OTNS8600 series chassis, occupy 1 slot
Network management function Support real-time monitoring of the port working state, including transmitting optical power and receiving optical power, temperature, etc.
Power consumption 16W (max, including transceiver)
MTBF ＞100000 hours
As a professional dwdm products manufacturer, we provide dwdm products, otn transponder, cwdm transponder, 10g transponder and etc. For more information, please feel free to contact us!
