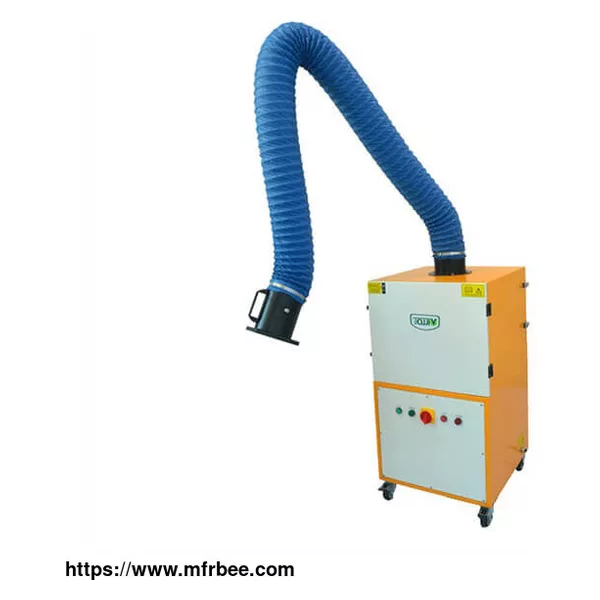

VHJ-B Series Welding Fume Extractor

Place Of Origin: Dongguan City, Guangdong Province, China

Minimum Order: 10

Packaging: wooden box, carton

Delivery: a month

VHJ-110B is high efficiency welding fume extractor with 3-stage filter system.

It is very ideal for the fume and dust disposal in the welding place or other similar working conditions.

Parameters of VHJ-B Series Welding Fume Extractor

Model VHJ-110B

Voltage(V/Hz) 380/50

Power (KW) / (HP) 1.1 / 1.5

Max negative pressure (Pa)/(mmH2O) 2180/222

Max Air Flow (m3/h) / (CFM) 1500 / 882

Noise dB(A) 75±2

Inlet diameter (mm) / (in) 1*Ø 150 / 1*5.9

Filtering area (m2)/ ( sq.yd ) 6 / 7.2

Filter rating ＞99%

Dimensions (mm) / (in) 500*530*1060 / 19.7*20.9*41.7

Net weight (kg)/ ( lb.) 110 / 242.5

Benefits of VHJ-B Series welding fume extractor for sale

1. Filtration efficiency: 99.9% at 0.3 microns with 3-stage filtration

2. The Compact and portable product features the swivel caster with brake for convenient movement.

3. This small portable fume extractor has the 360 degree rotation suction arm can be unlimited positioning.

4. The excellent motor and metal plate technology ensure long-lasting durability.

Health Risks of Welding Fumes

Production of welding fumes during welding process is one of the main factors that endanger the health of operators. Fine dust in submicron size can enter the alveoli, leading to chronic lung disease.

The metals that produce harmful suspended solids during welding are brass, tin, chromium, lead, manganese, nickel, zinc, etc. These suspended metallic particles can only be extracted with smoke exhauster. Welding without smoke exhaust will cause great harm to the health of workers.

Applications of VHJ-B Series Welding Fume Extractor

VHJ-110B fume extractors for sale is high efficiency welding fume extractor with 3-stage filter system.

This small welding fume extractor is very ideal for the fume and dust disposal in the welding place or other similar working conditions. Such as soldering, laser welding, cutting, grinding, and other smoke purification applications
