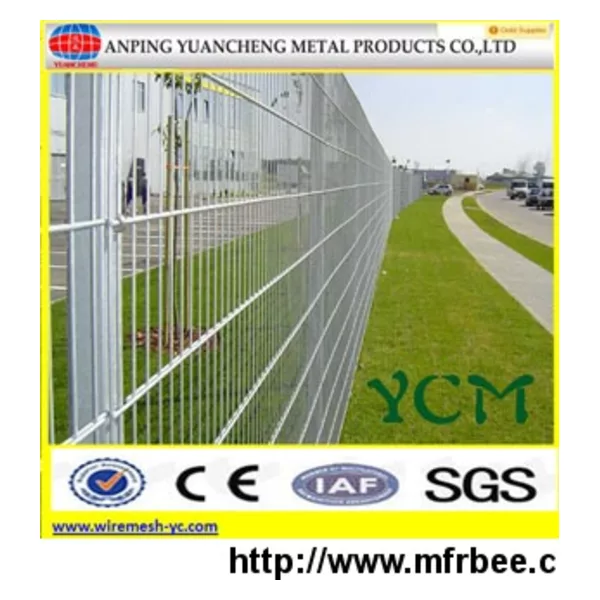

Double Wires Fence is often called 868 or 656 mesh (this being the size of the horizontal and vertical wires).It has two horizontal wires and one vertical wire forming a 200*50mm mesh.
Surface usually is electro galvanized then powder coating/pvc coating.
Colors: all kinds of colors are available such as green, blue, red, yellow, white and black.
Application: mainly used in the airport, prison, playground, warehouse and so on.
Height*Width Panel mm |
Mesh Size mm |
Wire Diameter(mm) |
Post of Height mm |
|||
630*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1100 | |
830*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1300 | |
1030*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1500 | |
1230*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1700 | |
1430*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1900 | |
1630*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2100 | |
1830*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2400 | |
2030*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2600 | |
2230*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2800 | |
2430*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 3000 |
The inherent strength within the panels is gained by sandwiching a 6mm vertical wire between two 8mm horizontal wires. This ensures that the heavy-duty panels offer an extremely high resistance to vandalism. Duex? 868 panels are then fixed to strong rolled hollow section posts ...
