Mixer
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

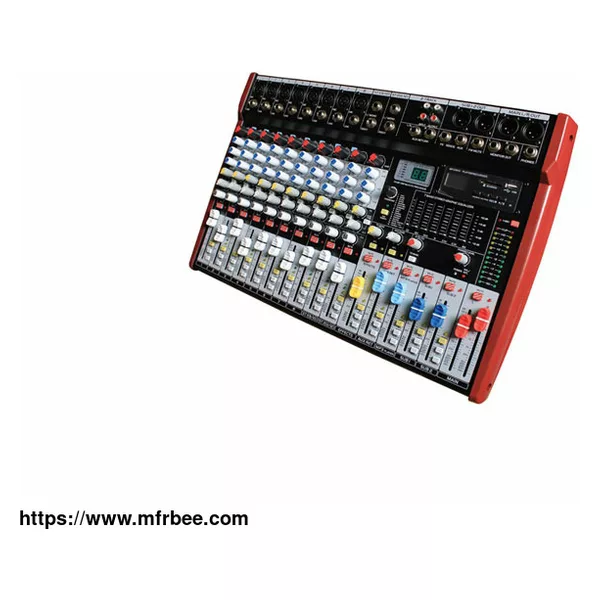

Features of GX-MX1012-Z/GX-MX1014-Z/GX-MX1016-Z/GX-MX1024-Z China Audio Mixer, China Sound Mixer
With MP3 player
With high and low impedance switching function
With four-way marshalling function
Comes with reverse feed interface
Compact design, with cabinet mounting bracket (12/14 way) for cabinet installation
Comes with 99 modes of digital effector
60MM high-precision fader with dust-proof net
3-stage EQ with low cut filter and high efficiency
2 stereo AUX loopbacks with level control, and can send the signal to AUX1-2
Recorder input/output with separate switch, which distributes the signal to the control room and output
With high pass filter (low cut), cut-off point 75Hz-18dB/Oct
High-precision 12-segment output level indicator
With USB port, support computer recording and playback
Wide-voltage switching power supply design can meet the needs of global regions
Technical Specifications of GX-MX1012-Z/GX-MX1014-Z/GX-MX1016-Z/GX-MX1024-Z China Mixer
Product number GX-MX1012-Z GX-MX1014-Z GX-MX1016-Z GX-MX1024-Z
Input 4 balanced gold-plated MIC XLR/balanced linear inputs; 6 balanced gold-plated MIC XLR/balanced linear inputs; 8 balanced gold-plated MIC XLR/balanced linear inputs; 16 balanced gold-plated
MIC XLR/balanced linear inputs;
2 pairs of stereo 6.35mm linear input/balanced gold-plated XLR input; 2 pairs of stereo 6.35mm linear input/balanced gold-plated XLR input; 2 pairs of stereo 6.35mm linear input/balanced
gold-plated XLR input; 2 pairs of stereo 6.35mm linear input/balanced gold-plated XLR input;
2 pairs of unbalanced lotus mouths 2 pairs of unbalanced lotus mouths 2 pairs of unbalanced lotus mouths 2 pairs of unbalanced lotus mouths
XLR interface With 48V phantom power
Frequency Range 10Hz~55KHz
Total harmonic distortion <0.03% @+0dBu
Mono gain 0~50 dB (MIC), balanced
Stereo gain +15~-35 dBu
Noise -100 dBu
Sensitivity 15 dB±3dB
Crosstalk -90 dB@1 kHz
Equalizer (mono) Treble: +/-15 dB@12 kHz
Midrange: +/-15 dB@100Hz-3 kHz
Bass: +/-15 dB@80 Hz
Equalizer (stereo) Treble: +/-15 dB@12 kHz
Middle and high tone: +/-15 dB@3 kHz
Mid-bass: +/-15 dB@500Hz
Bass: +/-15 dB@80 Hz
DSP effects D/A converter: 24bit
Preset mode: 99
Maximum output level: +22 dBu
Maximum input level: +30 dBu, Gain @+10 dB
Input resistance Microphone: 2.6KΩ, balanced
Stereo: 20KΩ, balanced
Auxiliary: 20KΩ, balanced
Recording: 24KΩ, balanced
Output impedance Main output: 240Ω, balanced, 120Ω, unbalanced
Auxiliary: 120Ω, balanced
Recording: 1KΩ, balanced
Headphone: 25Ω, balanced
Power Supply 100-240 VAC, 50 Hz; 30W 100-240 VAC, 50 Hz; 40W
Dimension (D*W*H) 431*388*86mm 431*438*86mm 431*493*86mm 431*718*86mm
Net weight 4Kg 4.5Kg 6Kg 8Kg
Functions of GX-MMX1010(V2) Audio Digital PA Mixer
Support up to 10 channels microphone input
Built-in 48V phantom power, power switch in back panel; independent 48 phantom power switch for each channel
Treble and bass adjustment and gain control function
Every channel comes with auto voice-activated function, voice-activated level is adjusted by MANU which allows sound channel with signal input to be activated.
Auto compressor: the compressor can adjust main output level. When multiple mic are used, the compressor can avoid feedback casued by the increased gain.
Feedback suppress function: built-in digital frequency shifter, high fidelity, excellent feedback suppress function. The function can be turned on or switch by “SHIFT/BYPASS” in front control
panel.
Built-ine mini computer, users can set the priority function freely by DIP switch in the front panel. The prior number is unlimited; When DIF is off, it means free discussion mode, 10 mic can speak
freely; When DIF setting is on, the corresponding mic is on, the level of other mic is auto reduced by 40dB.
Cascade function, form multiple groups of mic conference system
A group of aux input for background music
Balanced output and a group of aux output
Built-in mini processor with RS232 port and RS485 port, RS232 port is for setting and communication( two-way)
It comes with logic output, 10-digit logic output, 5V high level output when it is activated
External dual 17V power transformer( 16W220V)
Technical Specifications of GX-MMX1010(V2) Audio Mixer
Input Impedance Mic input 4KΩ
Cable input 30KΩ
Cascade input 20KΩ
AUX input 30KΩ
Output impedance Balanced output 200Ω
Unbalanced output 400Ω
Max input level Mic input -24dBV
Cable input +30dBV
AUX input +17dBV
Other Max gain 73dB
Frequency response 30Hz-28KHz
Input noise -124dBV
Mic input attenuation 50dB
Phantom power +48VDC
Power supply 15V/DC/500MA
Features of GX-MX2010A-D Mixer
Adopt quad-core 1.4G high-performance ARM processor, the linux system is stable and efficient, and it can be started quickly after power-on
Adopt 24-bit/48kHz sampling rate
With powerful DSP processing capabilities, the input channel has digital gain, 6-channel gain-sharing automatic mixing, supports 100 preset 4-band parameter equalization, noise gate, feedback
suppressor (10 channels), high and low pass, compression, Inverting function, each output channel has support for 100 preset 8-band parameter equalization, high and low pass, compression,
inversion, and delay functions
With matrix mixing, 4 digital effects, 2 DCA input group function
Built-in sine wave, pink noise, white noise signal generator, convenient for system debugging
DSP has programming, saving, loading and copying functions, supports 100 scenes, and can be exported to an external storage device for storage backup
The PEQ of the input channel supports 100 pre-stored scene presets, supports loading, recalling, importing and exporting
Support channel parameter copy function, the same channel can quickly copy data
With panel lock buttons to prevent misoperation on site
It has 6 balanced XLR microphone inputs/6.35 line inputs, through the digital gain speech amplifier channel, can effectively prevent misoperation, has extremely low noise and wide gain control
range, supports +48V phantom power
With 4 RCA inputs, 1 optical fiber input, and 1 coaxial input
Each channel can be assigned to Main, BUS1-4 output
With 1 set of main L/R mixing output, 4 auxiliary outputs, 1 headphone output
Equipped with USB interface, support U disk connection, realize USB recording and playback functions
The USB player supports APE, FLAC, MP3, WAV lossless audio formats, and supports Chinese song names
USB supports mouse connection to realize mouse control
Support optional WIFI hotspot to realize wireless control
Equipped with 11 100mm precision motor faders, with a good operating experience
The device comes with a 7-inch large color LCD touch screen, 1024×600 resolution
Support RS-232, TCP/IP control protocol, support WINDOW\IOS software control, real-time data synchronization
Support simultaneous control of 8 terminals
Support the optional dual digital mixer synchronization backup function, the standby mixer can synchronize the status of the main mixer in real time, and the main and standby switching time is less
than 0.2 seconds
With Chinese and English operation interface, switching does not need to restart the device
Wide-voltage switching power supply design can meet the needs of global areas
Technical Specifications of GX-MX2010A-D Mixer
Analog input 6CH (MIC/Line)+4CH(RCA)
Digital input 1CH(SPDIF IN)+1CH(OPTICAL)
Analog output L/R+4BUS+Headphone(L/R)
Digital output AES EBU
Frequency response 20Hz-20kHz ±0.3dB
THD+N distortion 0.005% @4dBu 20～20kHz
Signal-to-noise ratio 106dB without weighting
Dynamic Range 106dB without weighting
Noise floor -89dBu without weighting (output fader 0dBu)
Maximum input level 18dBu (6.2Vrms) balanced
Maximum output level 18dBu (6.2Vrms) Balanced
Effector 4 effector buses (6 preset effect parameters, 24 user storage)
Feedback suppressor 10 independent feedback suppressors
Display screen Main display: 7-inch LCD screen,1024x600,resistive touch
System Quad-core 1.4G high-performance ARM processor,Linux system
USB Recording and playback (play format APE, FLAC, MP3, WAV), support USB mouse
Electric fader 11 (1 L/R main channel fader, 10 channel faders)
Control protocol RS-232, TCP/IP
powered by AC 100V-240V; 50/60Hz 55W
net weight 8kg
Gross weight 11kg
Product Size 430x430x146mm (W×D×H)
Package dimensions 540x610×285mm (carton)
Features of GX-MX2016B-D Mixer
Adopt quad-core 1.4G high-performance ARM processor, the linux system is stable and efficient, and it can be started quickly after power on;
Adopt 24-bit/48kHz sampling rate
With powerful DSP processing capabilities, the input channel has digital gain, 14-channel gain sharing type automatic mixing, supports 100 preset 4-band parameter equalization, noise gate, feedback
suppressor (14 channels), high and low pass, compression , Inverting function, each output channel has support for 100 preset 8-band parameter equalization, high and low pass, compression,
inversion, and delay functions
With matrix mixing, 2 digital effectors, 2 DCA input group functions
Built-in sine wave, pink noise, white noise signal generator, convenient for system debugging
DSP has programming, saving, loading and copying functions, supports 100 scenes, and can be exported to an external storage device for storage backup
The PEQ of the input channel supports 100 pre-stored scene presets, supports loading, recalling, importing and exporting
Support channel parameter copy function, the same channel can quickly copy data
With panel lock button to prevent misoperation on site
It has 14 balanced XLR microphone inputs/6.35 line inputs, through the digital gain amplifier channel, can effectively prevent misoperation, has extremely low noise and wide gain control range,
supports +48V phantom power
With 2 6.35 line inputs
Each channel can be assigned to Main, BUS1-6, AUX1-2 output
With 1 set of main L/R mixing output, 6 BUS output, 2 AUX output, 1 headphone output
Equipped with USB interface, support U disk connection, realize USB recording and playback functions
The USB player supports APE, FLAC, MP3, WAV lossless audio formats, and supports Chinese song names
USB supports mouse connection to realize mouse control
Support optional WIFI hotspot to realize wireless control
Equipped with 13 100mm precision motor faders, with a good operating experience
The device comes with a 7-inch large color LCD touch screen, 1024×600 resolution;
Support RS-232, TCP/IP control protocol, support WINDOW\IOS software control, real-time data synchronization
Support simultaneous control of 8 terminals
Support the optional dual digital mixer synchronization backup function, the standby mixer can synchronize the status of the main mixer in real time, and the main and standby switching time is less
than 0.2 seconds.
With Chinese and English operation interface, switching does not need to restart the device
Wide-voltage switching power supply design can meet the needs of global regions
Technical Specifications of GX-MX2016B-D Mixer
Analog input 14CH (MIC/Line)+2CH(Line)
Digital input 1CH(SPDIF IN)+1CH(OPTICAL)
Analog output L/R+6BUS+2AUX+Headphone(L/R)
Digital output AES EBU
Frequency response 20Hz-20kHz ±0.3dB
THD+N distortion 0.005% @4dBu 20～20kHz
Signal-to-noise ratio 108dB no memory right
Dynamic Range 108dB no record
Noise floor -90dBu without weighting (output fader 0dBu)
Maximum input level 18dBu (6.2Vrms) balanced
Maximum output level 18dBu (6.2Vrms) balanced
Effector 2 effector buses (6 preset effect parameters, 24 user storage)
Feedback suppressor 14 independent feedback suppressors
Display screen Main display: 7-inch LCD screen,1024x600,resistive touch
System Quad-core 1.4G high-performance ARM processor,Linux system
USB Recording and playback (play format APE, FLAC, MP3, WAV), support USB mouse
Electric fader 13 (1 L/R main channel fader, 12 channel faders)
Control protocol RS-232, TCP/IP
powered by AC 100V-240V; 50/60Hz 55W
net weight 10.7kg
Gross weight 14.9kg
Product Size 535×485×205mm (W×D×H)
Package dimensions 635×580×335mm (carton)
Features of GX-MX2024B-D/GX-MX2032B-D Mixer
Adopt quad-core 1.4G high-performance ARM processor, the linux system is stable and efficient, and it can be started quickly after power on;
Adopt 24-bit/48kHz sampling rate
With powerful DSP processing capabilities, the input channel has digital gain, 16-channel gain- sharing automatic mixing, supports 100 preset 4-band parameter equalization, noise gate, feedback
suppressor (16 channels), high and low pass, compression , Inverting function, each output channel has support for 100 preset 8-band parameter equalization, high and low pass, compression,
inversion, and delay functions
With matrix mixing, digital effector, DCA input grouping function
Built-in sine wave, pink noise, white noise signal generator, convenient for system debugging
DSP has programming, saving, loading and copying functions, supports 100 scenes, and can be exported to an external storage device for storage backup ◆ The PEQ of the input channel supports 100
pre-stored scene presets, supports loading, recalling, importing and exporting
Support channel parameter copy function, the same channel can quickly copy data
With panel lock button to prevent misoperation on site
It has 24/32 channels with balanced XLR microphone input, through the digital gain amplifier channel, can effectively prevent misoperation, has extremely low noise and wide gain control range,
supports +48V phantom power
Each channel can be assigned to Main, BUS1-10 output
With 1 set of main L/R mixing output, 10 auxiliary outputs, 1 headphone output
Equipped with USB interface, support U disk connection, realize USB recording and playback functions
The USB player supports APE, FLAC, MP3, WAV lossless audio formats, and supports Chinese song names
USB supports mouse connection to realize mouse control
Equipped with 17 100mm precision motor faders, with a good operating experience
The fader channel is equipped with a 1.3-inch LCD display, which supports custom display of the channel name
The device comes with a 10.1-inch large color LCD touch screen with a resolution of 1280×800
Support RS-232, TCP/IP control protocol, support WINDOW\IOS software control, real-time data synchronization
Support simultaneous control of 8 terminals
With Chinese and English operation interface, switching does not need to restart the device
Wide-voltage switching power supply design can meet the needs of global regions.
Support customized flight case packaging
Technical Specifications of GX-MX2024B-D/GX-MX2032B-D Mixer
Model GX-MX2024B-D GX-MX2032B-D
Analog input 24CH ( MIC/Line) 32CH ( MIC/Line )
Analog output L/R+10BUS+Headphone(L/R)
Frequency response 20Hz 20kHz ±0.3dB
THD+N distortion 0.005% @4dBu 20 20kHz
Signal-to-noise ratio 108dB without weight
Dynamic Range 108dB without weight
Noise floor -90dBu without weighting (output fader 0dBu)
Maximum input level Balanced 20dBu
Maximum output level Balanced 20dBu
Effector 2 effector buses (6 preset effect parameters, 24 user storage)
Feedback suppressor 16 independent feedback suppressors
Display screen Main display: 10.1-inch LCD screen, 1280×800, resistive touch;
channel display: 1.3-inch LCD screen
System Quad-core 1.4G high-performance ARM processor, Linux system
USB Recording and playback (play format APE, FLAC, MP3, WAV), support USB mouse
Electric fader 17 (1 L/R main channel fader, 16 channel faders)
Control protocol RS-232, TCP/IP
powered by AC 100V-240V; 50/60Hz 155W
net weight 22.1kg
Gross weight 26.5kg (carton) 39.5kg (flight case)
Product Size 610×650×230mm (W×D×H)
Package dimensions 758×735×350mm (carton) 800×710×350mm (flight case)
As a reliable audio mixer manufacturer, we can offer sorts of power mixer china for sale, if you are interested, please contact us.
Now the price of gonsin digital conference system is affordable, if you have needs to buy high quality conference management systems, please leave us a message.
- Country: Afghanistan
- Business Type:
- Market:
- Founded Year:
- Address:
- Contact:gon sin1
Other products from Gonsin Conference Equipment Co.,LTD.
Relate products of Mixer
Mixer
Features of GX-MX1012-Z/GX-MX1014-Z/GX-MX1016-Z/GX-MX1024-Z Audio Mixer China With MP3 player With high and low impedance switching function With four-way marshalling function Comes with reverse feed interface Compact design, with cabinet mounting bracket (12/14 way) for ...
SLHS Shaft Paddle Mixer
SLHS Shaft Paddle Mixer Introduction Herm Machinery\'s latest dedicated double-shaft paddle mixer has many advantages. These feed mixers are very gentle on the product, have low energy consumption, high capacity, low space requirements, and flexible filling. It can be equipped ...
SLHY Ribbon Mixer
SLHY Ribbon Mixer Introduction Our SLHY horizontal ribbon mixer for animal feed production is widely used in feed mills, for mixing powder materials, guaranteeing uniformity and quality of complete feed. During the convection process of the feed mixing machine, the two ...
