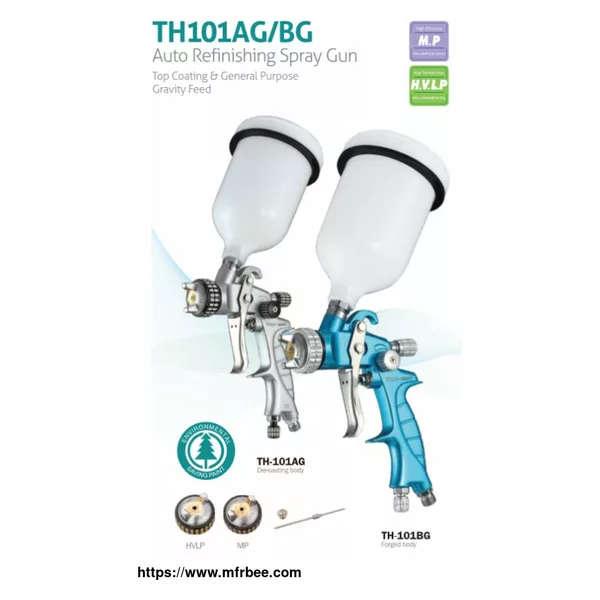

TH101AG BEST HVLP PAINT SPRAYER FOR CARS

HVLP/MP

TH101AG: Die-casting body

TH101BG: Forged body

Top coating & general purpose

Gravity Feed

High-speed rate, Max. material saving

High efficiency

Max. application speed

No o-ring Design

High-grade S.S tip & needle

Unique dual-color ring & knobs

Environmental, paint saving

H.V.L.P: 200-240mm; 7.9-9.4in

M.P: 240-280mm; 9.4-11in

Product overview

ZEGO provides the best automotive gravity feed spray gun, and the customers will choose their own suitable tools. TH101AG BEST HVLP PAINT SPRAYER FOR CARS has a gravity feed. With no o-ring design and high-speed rate, best hvlp paint gun for cars will save the material and improve efficiency for general purpose. Actually, our best hvlp car painting is environmental-friendly and paint-saving.

Models of TH101AG Best HVLP Paint Sprayer For Cars

Atomization Technology HVLP MP

Model TH101AG TH101AG

Nozzle Range 1.0-2.0mm 1.0-2.0mm

Pattern(1.3mm) 200-240mm 240-280mm

7.9-9.4in 9.4-11in

Recommended Air Inlet Pressure 2.0bar 2.5bar

29psi 36psi

Air Consumption 400l/min 300l/min

14cfm 10.6cfm

Air Inlet G/NPT 1/4"

Cup 600ml

plastic 600ml

plastic

Weight(Gun Only) 498g 498g

Material Body Aluminium Die-casted/Forged Aluminium Die-casted/Forged

Air Cap Special Selected Brass

Nozzle/Fluid Tip High Grade Stainless Steel

Needle High Grade Stainless Steel

Specifications of TH101AG Best HVLP Paint Sprayer For Cars

Model Type of feed Nozzle Spray pattern Fluid output Air consumption Air pressure Cup volume

mm mm ml/min NL/min MPa ml

TH101AG Gravity φ1.4 200-240 140 400 0.2-0.3 600

φ1.7 240-280 250

φ2.0 260-300 340

Parts List of TH101AG Best HVLP Paint Sprayer For Cars

No. Description Qty No. Description Qty No. Description Qty No. Description Qty

1 Gun body 1 16 Air valve spindle 1 31 Gasket 1 Accessories

2 Needle packing screw washer 1 17 Air valve washer 1 32 Retainer 4 1

3 Needle packing spring 1 18 Air valve 1 33 Spray pattern adjusts the adapter 1 46 Multipurpose spanner 1

4 Needle packing washer 1 19 Air valve seat 1 34 Spray pattern adjust lever 1 47 Brush A 1

5 Needle packing gasket 1 20 Sealing screw 1 35 Washer 1 48 Male plug 1

6 Needle packing screw 1 21 Retainer 5 5 36 Spray pattern adjust knob 1

7 Air baffle 1 22 Air adjust adpter 1 37 Crosshead screw

8 Washer for nozzle seat 1 23 Air adjust knob 1 38 Needle adjust adapter 1

9 Nozzle seat 1 24 Gland seal 1 39 Needle 1

10 Nozzle 1 25 G1/4(A) joint 1 40 Needle adjust spring 1

11 Air cap 1 26 Washer 1 41 Spring plug 1

12 Washer for air cap 1 27 Trigger 1 42 Needle adjust knob 1

13 Locking ring 1 28 Trigger pin 1 43 Cup adapter 1

14 Retainer 1 29 Hinge pin 1 44 Strainer 1

15 Air valve spring 1 30 Washer 1 45 Cup 1

As a professional spray gun company, ZEGO has high-quality automotive spray gun. Welcome to contact us if needed.
