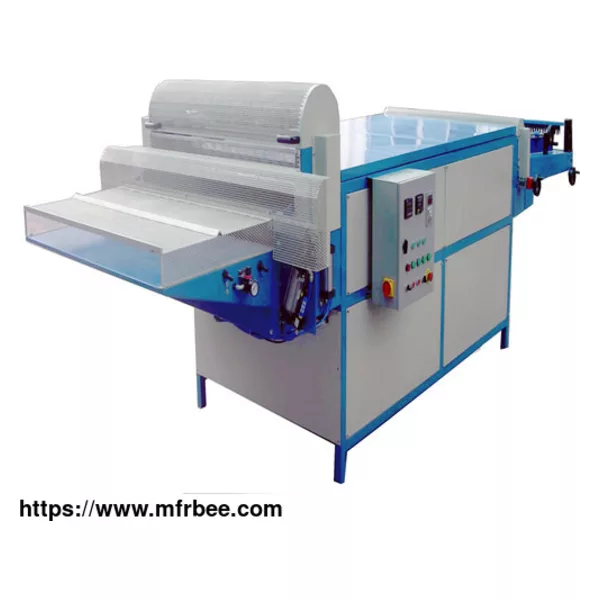

Honeycomb Paper Core Expander

This paper core expander is applied to expand and dry the honeycomb paper core. By heating and drying, evaporating the water in it, and then stretching by using honeycomb expander, the shape of the honeycomb paper core is hexagonal, occupying a larger area, and achieving higher strength.

Specifications of Honeycomb Paper Core Machine

Heating type Hot air circulation

Power supply 380V/50Hz+N+Pe

Power consumption 16kw

Nominal current 25A

Production speed Max. 8m/min

Paper width (Max) 1500mm

Expanded paper width (Max) 1200mm

Thickness 6-90mm

Cutting type Automatic cutting

Dimension 4300*1970*1330mm

Weight 980kg

Advantages of Honeycomb Expander

The Paper core expander can stretch and shape the honeycomb paper core, without deformation after stretching, and the honeycomb paper has high strength. The finished product manufactured by the paper core expander can be used for packaging or made into honeycomb cardboard.

Honeycomb paper after high precision roll cutting by the paper core expander, after stretching than before stretching up to about 1.4-1.6 times, not only saves the use of consumables cost but also play a cushioning protection effect.
