Multi Channel Syringe Pump

Multi Channel Syringe Pump is a precision syringe pump specially designed for high precision liquid handling with a small footprint applied in limited spaces. The fluid path borosilicate glass, PCTFE, sapphire is workable for strong corrosive chemicals in a wide application range. It is available to select from a variety of syringe volumes and valve configurations.

Model Numbers of Multi Channel Syringe Pump

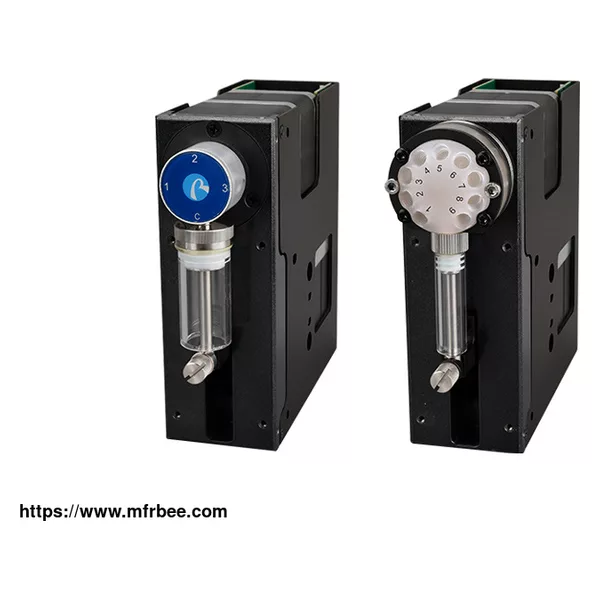

Smart SY-01B multi syringe pump is the newest member in the series of micro-syringe pumps self-developed by Runze Fluid, which can handling fluids from microliters to milliliters with extraordinary accuracy and precision. Accommodates distribution valves and syringe in a variety of configurations. Transfers liquid in high precision which can meet most users' requirements. Can be used in series with multiple pumps. The excellent performance of Smart SY-01B syringe pump provides a guarantee on the R & D and application for users. efficiency maintenance-free stepper motor drive system. Address up to 24 pumps individually via RS485 or CAN Communication.

Specification of Multi Channel Syringe Pump

Accuracy ≤1%@100% stroke

Precision (Repeatability) 0.3%~0.5%@100% stroke

Rated stroke (control steps) 30mm(12000 steps standard mode; 96000 steps micro-step mode)

Maximum speed 450rpm

Linear speed 0.0067mm/s ~ 15mm/s(media: water ; 1 rated stroke=one time)

Running time (per rated stroke) 2s-4500s(media: water ; 1 rated stroke=one time)

Resolution 0.0025mm (per step)

ILS Syringe 25μl, 50μl, 125μl, 250μl. 500μl, 1.25ml, 2.5ml, 5ml

Valve Model(available) M01、M02、M03、M04、M05、M06、M10、M12

Wetted material Borosilicate glass, PTFE, Sapphire, PCTFE

Max. Pressure Rating 0.7Mpa

Actuator Trapezoidal screw (Lead 1mm/2mm)

Connection 1/4-28UNF

Baud rate RS232/RS485: 9600bps, 38400bps

Communication addres Up to 15 individual addresses can be provided

Firmware Programmable acceleration/deceleration, termination of movement, programmable piston speed, diagnostic query error, programmable clearance compensation, absolute position or relative position, change speed on the fly, programmable Non-Volatile Memory

Power supply DC24V/3A

Operating temperature 5℃~55℃

Operating humidity <80% relative humidity, non-condensing

Dimension (L*W*H) 45*143.3*127mm

Max Power 25W

Net weight 1.5kg

Nanjing Runze Fluid Control Equipment Co., Ltd. founded in 2014, was born a high-tech manufacturer engaged in R&D, production, marketing, and service for microfluidic components including peristaltic pump, syringe pump, piston pump, multiport valve, tubing, plastic fittings, which are key parts in environmental analysis, laboratory, medical device, bio-pharmaceuticals, petrochemical engineering, food, and beverage.
