Magnetic Welding Holders

We have different types of magnetic welding holder for sale at Meank China welding magnetic hook factories. Magnetic welding holders are magnetic tools which often used for the welding operation. Such magnetic tool has another name of magnetic welding clamps and magnetic welding support, also shorted as china welding magnets. The workpieces are held by the strong magnetic field generated by the permanent magnet. The magnetic welding holder can fix the ferromagnetic workpiece to be welded through the action of the magnet, and it does not need to hold the workpiece with hand so that the welding operation can be carried out safely. The magnetic welding support is an ideal auxiliary tool for welding because it is fast and accurate.

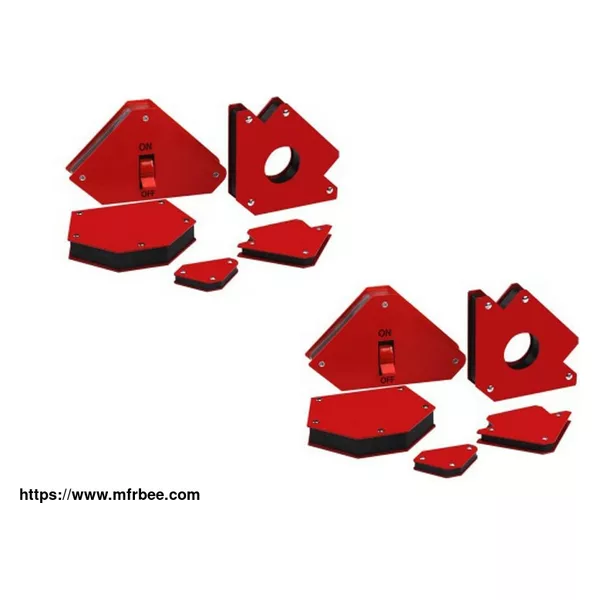

Common Types Of Magnetic Welding Holder:

we can supply these types of magnetic holders for welding

1, Triangle magnetic welding clamps&holder

2, Adjustable triangle welding magnet holder&support, the workpieces can be fixed to any angle freely by using adjustable magnetic welding support, which is very flexible.

3, Polygonal adjustable magnetic welding holder which can satisfy multi-angle clamping.

4, Welding holder magnet with switch, the magnetic field arrangement of the permanent magnet is adjusted by rotating the switch to achieve the purpose of holding and releasing objects

Specification Of Triangle Magnetic Welding Clamps&holder:

Model Length(mm) Width(mm) Thickness(mm) Holding Force(kg) Weight(kg)

Triangle--S 120 83 14 12kg 0.3kg

Triangle-M 155 102 16 22kg 0.6kg

Triangle-L 189 122 25 35kg 1.1kg

Triangle-XL 189 122 25 50kg 1.6kg

Specification Of Polygonal Magnetic Welding Holder:

Model Length(mm) Width(mm) Thickness(mm) Holding Force（kg） Weight(kg)

Polygonal-S 95 63 13 12kg 0.25kg

Polygonal-M 115 90 16 25kg 0.52kg

Polygonal-L 155 110 26 35kg 1.1kg

Specification Of Adjustable Magnetic Welding Holder&support:

Model Length(mm) Width(mm) Thickness(mm) Holding Force(kg) Weight(kg)

Adjustable 85 65 24 22kg 0.55kg

Characteristics Of The Magnetic Holder For Welding:

The magnetic force on the side is particularly strong, and the plane is almost non-magnetic

Metal anti-collision shell, excellent drop resistance

Red spray process, welding operation more eye-catching

Resin edge sealing, effectively protecting the internal strong magnets

The two metal panels are fixed by mechanical rivets so that the welding angle is fixed

Advantages of welding magnets: above types of welding magnets suitable for multi-angle positioning welding and customized angle accurate welding, which improves the accuracy of welding, release hands, and enhances the safety

Customized welding magnet: in addition to the above welding magnets, we can also customize a variety of magnetic welding holders(welding magnets) according to the customer's use or requirement.
