AG-01 Magnetic Cylinder Pneumatic Reed Switch Sensor

AG-01 series pneumatic cylinder reed switch sensor

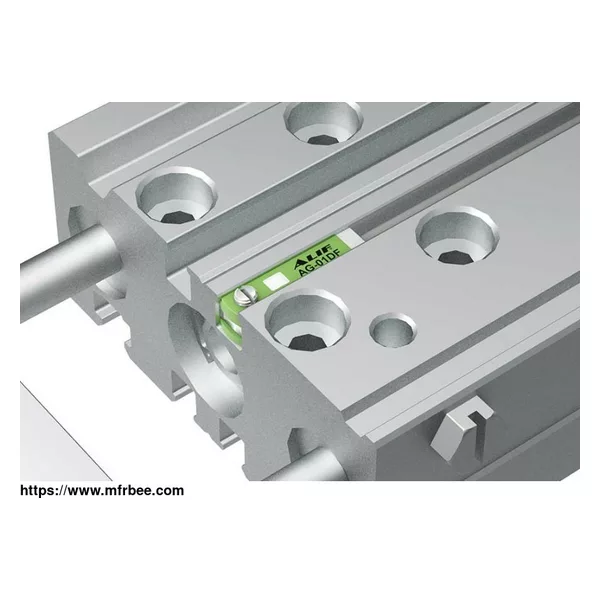

The new AG-01 pneumatic reed switch sensor series is suitable for AIRTAC 4.35*4.5 square grooves, which can replace the DS1-G of AIRTAC; the embedded stainless steel nut strengthens the structural strength, making the AG-01 reed switch in pneumatic cylinders series more suitable for organic solvents or strong corrosiveness.

AG-01 Magnetic Reed Switch For Pneumatic Cylinder Specifications

Model AG-01 DF AG-01 N AG-01 P

Switching Logic Normally Open Solid State Output, Normally Open

Output Type 2 Wire Solid State NPN Current Sinking PNP Current Sinking

Voltage Range 10～30V DC 5～30V DC

Sensor Current 1～50 mA 0～100 mA

Switch Rating 1.5 W Max. 3W Max.

Consumption / 3 mA Max.@24V

Voltage Drop 2.65V Max.@50mA DC 0.8V Max.@100mA DC

Leakage Current 90 μA Max.@28V 0.01 mA Max.

Indicator Red LED Red LED Green LED

Cable Φ2.8, 2C, Grey Oil-Resistant PVC Φ2.8, 3C, Grey Oil-Resistant PVC

Sensitivity 40～800 Gauss 40～800 Gauss

Sensor Frequency 900Hz 900Hz

Temperature -10～70℃ -10～70℃

Shock 50G 50G

Vibration 9G 9G

Ingress Protection IP68 (GB/T4208-2017) IP68 (GB/T4208-2017)

Protection Circuit Surge Suppression Power Reverse Polarity; Surge Suppression

CE Certificate NO. E8A 17 04 53334 007 E8A 17 04 53334 008

CNEx Certificate NO. CNEx21.2238X CNEx21.2239X

RoHS2.0 NO. RoHS 2011/65/EU & (EU) 2015/863

Reach NO. (EC) N 1907/2006 (REACH)

How Does a Reed Switch Sensor for Cylinder Function?

A reed switch for pneumatic cylinder application works by detecting the presence or absence of a magnetic field. The pneumatic reed switch sensor is a kind of air cylinder position sensor that contains a glass-enclosed reed switch, which comprises two ferromagnetic contacts that are separated by an insulating gap. When a magnetic field is present, the reed switch closes, allowing a current to flow through it. For a magnetic cylinder sensor, a magnet is mounted on the cylinder piston, and when the piston moves, the magnet activates the reed switch sensor. This provides accurate position feedback, which can be used for precise control of the cylinder's operation.

Reed Switch Cylinder Sensor Uses

Reed switch cylinder sensors are widely used in industrial automation applications for position sensing and control of pneumatic cylinders. The reed switch sensor for cylinders uses a magnet mounted on the cylinder piston that activates the reed switch sensor when the piston moves, providing accurate and consistent feedback on the cylinder's position. Cylinder reed switch sensor is durable and reliable, making them ideal for a range of harsh industrial environments. Some common uses of this type of pneumatic magnetic sensor include robotics, packaging, automotive manufacturing, and material handling. Magnetic cylinder sensor provides precise control and safety, improving the overall efficiency of industrial machines and systems.

How to Choose the Right Reed Switch for Pneumatic Cylinder?

When selecting a reed switch sensor for cylinders, it is important to consider the brand and specific product parameters. For reliable performance and durability, we recommend the AG-01 pneumatic reed switch sensor from Alif Sensor. This pneumatic air cylinder magnetic reed switch sensor is designed specifically for use with pneumatic cylinders and features a compact size for easy installation.

The AG-01 cylinder reed switch sensor also has a high switching capacity and long lifespan, ensuring accurate and consistent signal transmission. Additionally, it is resistant to shock and vibration, making it ideal for operation in harsh industrial environments.

To choose the right reed switch sensor for cylinders, be sure to consider the specific application requirements and verify that the selected switch is compatible with your cylinder's specifications. With the AG-01 reed switch from Alif Sensor, you can be confident in reliable operation and long-lasting performance.

Why Choose ALIF Pneumatic Reed Switch Sensor?

As a leading brand in the industry, ALIF Sensor offers a range of high-quality pneumatic reed switch sensors, including the cylinder reed switch sensor. Here are some reasons why you should choose ALIF for your sensor needs.

Reliability: ALIF pneumatic reed switch sensors are built to withstand harsh environments and ensure long-term reliability. They are resistant to dust, water, and other contaminants, making them suitable for a wide range of applications.

High Sensitivity: Our pneumatic reed switch sensors boast high sensitivity, ensuring accurate and consistent detection. This makes them ideal for precise control and monitoring in various industrial processes.

Fast Response Time: ALIF reed switch sensor for cylinder have a fast response time, allowing for quick signal transmission and reducing downtime in your operations. This helps optimize efficiency and productivity.

Easy Installation: With their simple design and user-friendly installation process, ALIF pneumatic reed switch sensors can be easily integrated into your existing systems. This saves time and effort during setup and eliminates unnecessary complications.

Versatility: Our reed switch sensors for cylinders are compatible with different cylinder types, offering flexibility in their application. Whether it's for pneumatic, hydraulic, or other systems, ALIF sensors can seamlessly adapt to your specific needs.

With ALIF's commitment to providing exceptional products and unparalleled customer support, you can trust our pneumatic reed switch sensors to deliver top-notch performance and reliability for your industrial applications. Choose ALIF for your sensor solutions and experience the difference.

Cylinder Reed Switch Sensor Features

Introducing the ALIF Sensor, a top-notch magnetic cylinder manufacturer. Our cylinder reed switch sensor for pneumatic applications is an absolute game-changer in the industry. With its unbeatable reed switch sensor prices, superior performance, and unique features, it's the perfect choice for all your sensing needs.

Our reed switch sensor for cylinders boasts impressive specifications. Its compact design allows for easy installation in tight spaces. The high sensitivity ensures accurate sensing, even in the most demanding environments. With a wide operating temperature range, it guarantees reliable performance in extreme conditions. Plus, its long-lasting durability makes it a cost-effective solution.

Now, let's delve into its amazing features. The ALIF Sensor cylinder reed switch sensor is designed to seamlessly integrate with pneumatic cylinders, providing precise position sensing. Its non-contact operation ensures no friction or wear, extending the sensor's lifespan. Additionally, its IP67 rating offers protection against dust and water, making it suitable for various magnetic sensor applications.

Don't miss out on this outstanding pneumatic air cylinder magnetic reed switch sensor. Experience the unparalleled performance of the ALIF Sensor cylinder reed switch sensor today. Find the perfect balance between quality, price, and reliability. Visit our website or contact us to discover more about our reed switch sensor for cylinders and take advantage of our competitive pricing.
