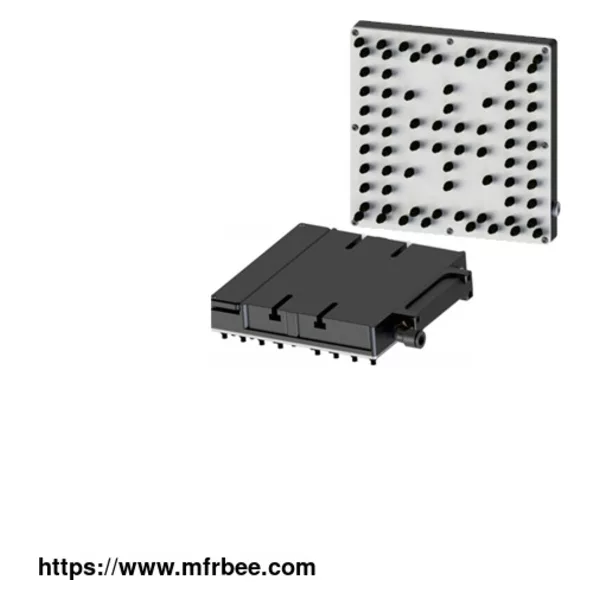

MATRIX GRIPPER

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

SLF Series

Easy to install and maintain

Flexible selection according to the actual working condition

Suitable for handling hollow or irregular workpieces, prevent the adhesion between workpieces

Flexible gripping, prevent the deformation of the workpiece during handling

Features

Matrix Gripper

Various types of options, built-in vacuum generator type, external blower type, external vacuum generator type

With throttling function

Suction cups on the adsorbing area

Selection Guide

SLF Series Special Vacuum Gripper

SLF 180 S - 5 WS

① ② ③ ④ ⑤

① Series ② Size ③ Type of vacuum source ④ Dia. of the suction cup ⑤ Suction cup material

SLF 140 - 140×140mm Nil - Default, external blower Nil - SPC7 Nil - NBR

180 - 180×180mm W - External vacuum generator 3 - SPC3 WS - White silicone

S - Built-in flow type vacuum generator 5 - SPC5 E - EPDM

X - Built-in vacuum type vacuum generator

Selection

Model/ Type of vacuum source

140 140W 180 180W 180S 180X

SLF140 SLF140W SLF180 SLF180W SLF180S SLF180X

SLF140-WS SLF140W-WS SLF180-WS SLF180W-WS SLF180S-WS SLF180X-WS

SLF140-E SLF140W-E SLF180-E SLF180W-E SLF180S-E SLF180X-E

SLF140-3 SLF140W-3 SLF180-3 SLF180W-3 SLF180S-3 SLF180X-3

SLF140-3WS SLF140W-3WS SLF180-3WS SLF180W-3WS SLF180S-3WS SLF180X-3WS

SLF140-3E SLF140W-3E SLF180-3E SLF180W3-E SLF180S-3E SLF180X-3E

SLF140-5 SLF140W-5 SLF180-5 SLF180W-5 SLF180S-5 SLF180X-5

SLF140-5WS SLF140W-5WS SLF180-5WS SLF180W-5WS SLF180S-5WS SLF180X-5WS

SLF140-5E SLF140W-5E SLF180-5E SLF180W-5E SLF180S-5E SLF180X-5E

Technical parameters

Mode Air supply

pressure range

bar Working temperature

℃ Vacuum source QTY of the suction cup

pcs Weight

SLF140 1.0~7.0 0~60 External blower 186 890

SLF180 1.0~7.0 0~60 External blower 312 1,460

SLF140W 1.0~7.0 0~60 External large flow vacuum generator 114 1,070

SLF180W 1.0~7.0 0~60 External large flow vacuum generator 76 1,330

Model Air supply

pressure range

bar Rated air

supply pressure

bar Max.

vacuum level

-kPa Max.

vacuum flow

NL/min Air

consumption

NL/min Working

temperature

℃ QTY of

suction cup

pcs Weight

SLF180S 1.0~7.0 5 58 242 360 0~60 76 1,220

SLF180X 1.0~7.0 5 80 250 480 0~60 76 1,220

Dimensions



Thin Lip Matrix Gripper

Airbest provides pneumatic vacuum generator, pneumatic finger gripper, pneumatic gripper fingers, airbest vacuum, etc. For more information, please feel free to contact us!
