WAFER GRIPPER

Minimum Order
1
Packaging
N/A
Delivery
15 Days
SLW Series
Reduce fragment rate

With vacuum release port, improve efficiency

Easy to install, different types of option

Simple structure, and integrated design, could connect to compressed air directly, with no need extra vacuum generator
Features

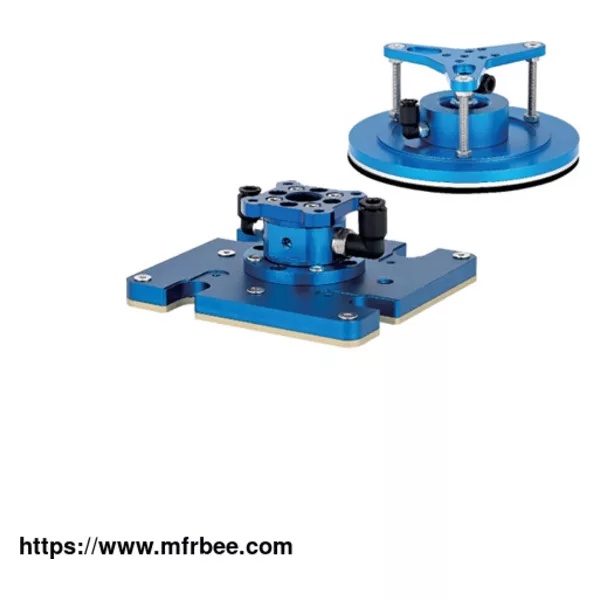

Thin Lip Wafer Gripper

Multihole adsorbing area, prevent the physical deformation of the fragile workpiece

Integrated with a suction cup and vacuum generator

Vertical exhaust and lateral exhaust for option

Vertical and horizontal mounting types for option

Selection Guide
SLW Series Special Vacuum Gripper
SLW 115 PK - M10 I - F1
① ② ③ ④ ⑤ ⑥

① Series Dimension ③ Material of suction cup ④ Specification of vacuum generator ⑤ Exhaust direction ⑥ Mounting flange
SLW 100 - 100×55mm PK - PEEK M10 - Diameter φ10mm I - Vertical exhaust F1 - Vertical,55×6mm
115 - 115×115mm AE - Aluminum plate+ M15 - Diameter φ15mm Y - Lateral exhaust F3 - Horizontal,71×9mm
146 - 146×146mm EPDM support cushion F9 - Vertical, Triangular flange
170 - 170×105mm FT - Sponge+PTFE
120 - φ120mm
150 - φ150mm
180 - φ180mm



Dimensions
Thin Lip Wafer Gripper

We provide vacuum suction tool, soft pneumatic gripper, pneumatic soft gripper, airbest vacuum pump, etc. For more information, please feel free to contact us!
