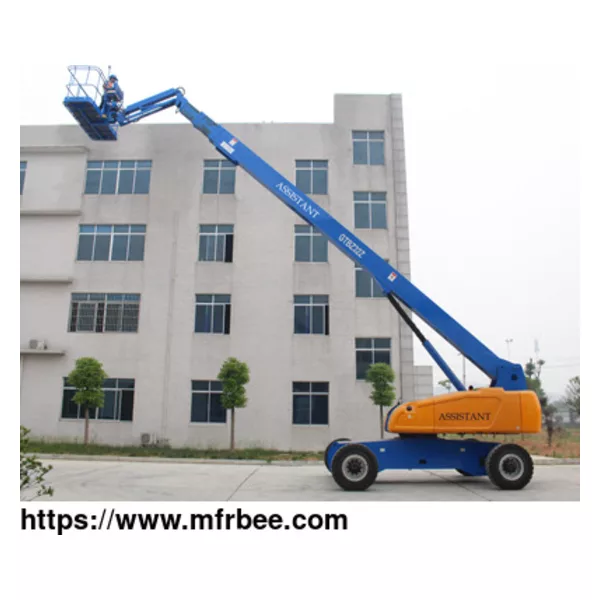

We are professional Self propelled Platform 30-32M supplier and factory in China.We can produce the product according to your requirements.
Self propelled Platform 30-32M Measurements And Specifications
MODEL GTBZ30 GTBZ32Z
MEASUREMENTS Metric US Metric US
Working height maximum * 32.2m 105ft 33.7m 111ft
Platform height maximum 30.4m 100ft 32m 105ft
Horizontal reach maximum ** 22.9m 75ft 24.4m 80ft
Below ground reach 3.34m 11ft 4.51m 15ft
A Platform length-8ftmodel 0.91m 3ft 0.91m 3ft
Platform length-6ftmodel 0.76m 2ft6in 0.76m 2ft6in
B Platform width-8ftmodel 2.44m 8ft 2.44m 8ft
Platform width-6ftmodel 1.83m 6ft 1.83m 6ft
C Height-stowed 3.08m 10ft 3.08m 10ft
D Length-stowed 13m 43ft 14.02m 46ft
E Width –axle retracted 2.49m 8ft 2.49m 8ft
Width –axle extended 3.35m 11ft 3.35m 11ft
F Wheelbase 3.66m 12ft 3.66m 12ft
G Ground clearance-center 0.43m 1ft5in 0.43m 1ft5in
PRODUCTIVITY
Lift capacity (restricted) 480kg 1056lbs 480kg 1056lbs
Lift capacity (non-restricted) 340kg 748lbs 340kg 748lbs
Platform rotation 160° 160°
Jib rotation — 135°
Turntable Swing 360°continuous 360°continuous
Turntable tail swing -axle retracted 1.82m 6ft 1.82m 6ft
Turntable tail swing -axle extended 1.38m 5ft 1.38m 5ft
Travel speed -stowed 4.4km/h 2.73mph 4.4km/h 2.73mph
Travel speed -raised or extended 1.1km/h 0.68mph 1.1km/h 0.68mph
Gradeability -stowed (4WD/2WD) 42%/30% 42%/30%
Turning radius - axle retracted inside 4.14m 13ft7in 4.14m 13ft7in
Turning radius - axle retracted outside 6.56m 22ft 6.56m 22ft
Turning radius - axle extended inside 2.74m 9ft 2.74m 9ft
Turning radius - axle extended outside 5.85m 19ft 5.85m 19ft
Controls 24V DC Proportional 24V DC Proportional
Solid tires 12.00-20/8.5 12.00-20/8.5
POWER
Power source Commins B3.3 75 HP (56kw)
Auxiliary power unit 24V DC 24V DC
Hydraulic tank capacity 265L 265L
Fuel tank capacity 150L 150L
WEIGHT
2WD 18520kg 40830lbs 18660kg 41140lbs
4WD 18600kg 41000lbs 18740kg 41310lbs
STANDARDS COMPLIANCE EN280、JG/T5101、Q/ADZV001-2008
