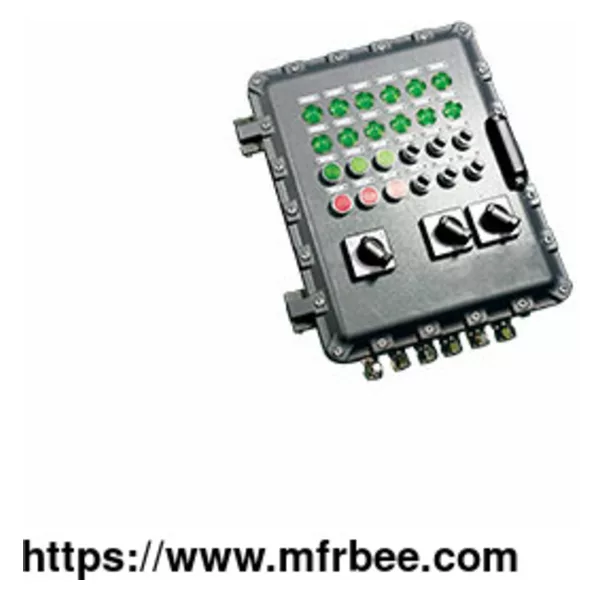

Explosion Proof Panel
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Products Show for Explosion Proof Panel
Customized electrical circuit configuration based on parameters to distribute
the power from filed bus to branch circuits where flammables present.
Explosion proof panel, also called explosion proof enclosure, explosion proof panelboards, explosion proof control panel, explosion proof panels, explosion proof power supply, atex db, hazardous
location panel, hazardous location control systems, class 1 div 2 miniature circuit breaker, explosion proof motor enclosure, electrical breaker explosion, explosion proof power distribution panel,
explosion proof control panel enclosure, explosion proof motor starter, flame proof panel box, explosion proof circuit breaker, flame proof circuit breaker, explosion proof electrical panel,
explosion proof starter, explosion proof emergency stop button, class 1 div 2 breaker, ex proof panel, explosion proof junction box, atex distribution board, db equipment, explosion proof
receptacle box, explosion proof outlet box, box panel explosion proof , explosion proof electrical boxes, ex d box.
Through subassembly circuit breaker, fusible switch inside the housing and handle operators on the housing cover, explosion proof panel functions the distribution for the electrical power from
upstream explosion proof panelboard to branch circuits in the whole power transmitting process. In order to be used in harsh and hazardous location, internal components should be contained in a
specialized designed flame proof aluminum alloy enclosed cabinet or increased safety enclosed cabinet to prevent the explosion caused by ignited hazardous gas or dust from leaking to the outside of
the cabinet to cause the explosion in explosive atmosphere. SUREALL explosion proof panel can be widely used in class 1 div 1, class 1 div 2, zone 1 and zone 2 whose gas group could be group A, B,
C, D, IIC. We deeply know your requests will need scientific design for every explosion proof panel, be free to contact our engineers for considerate drawings.
Features
Explosion Proof Panel
Die cast Aluminum alloy flame proof Ex d housing for IIB/IIC
Glass reinforced plastic increased safety housing
Stainless steel 304/316 increase safety housing
Ex d, Ex de, Ex ed varied explosion proof protection
Design drawing for every different request
Professional planning for internal space
Scientific power distribution arrangement
Customized brand and specifications for components
Wide ambient temperature range from -40℃ - +55℃
IP66 ingress protection, NEMA 4X
Class 1 Div 1, Class 1 Div 2, Class 2 Division 1, Class 2 Division 1
Group A, B, C, D, Group C, D, IIB, IIC
Zone 1, Zone 2,Zone 21, Zone 22
Widely Use
Explosion Proof Panel
Explosion proof panel can be applied for many usages, in order to make you understand clearly, now we are listing the main usage directions from four aspects, function, hazard class division, usage
by application and alternative for brand-new models.
Function
From the incoming wires to the outgoing wires, from main circuit to brand circuit, explosion proof panel play a intermediate allocator role in distributing electricity for load.
Hazard class division
You know there are different classifications and divisions for explosion proof panel, hazard class division can be class 1 div 1 and class div 2, group A, B, C, D and group C, D, zone 1 and zone 2,
IIC and IIB, you can check the hazardous area classifications chart from other pages.
Explosion Proof Panel Main Use
Usage by application
Depends on the application field, explosion proof junction box can be used in oil and gas plant, processing refinery, oil tankers, underground mining plant chemical plant and anywhere there is
flammable gas, vapor, mist and dust.
Alternative for brand-new model
SUREALL explosion proof panel is the alternative panel solution for eib 1 box, ejb full form, d2p box, bzc box, xsx2 box, xsx3 box, b7p box.
Explosion Proof Panel
Technical Details of Explosion Proof Control Panel
Built-in with a rail supported all-in-one chassis with varied kinds and numbers of branch devices, mostly used overcurrent protection devices like miniature circuit breaker (MCB), molded case
circuit breaker (MCCB), fusible switch, thermal over-load relay, AC contactor and other devices surge protection devices, indicators, pushbuttons, ammeters, voltmeter.
Explosion proof panel is the main intermediary component dividing the electrical power feed into branch circuits by providing the typical overcurrent protection through those branch devices for
downstream devices in power distribution system. Whereas, all branch devices are protected by flame proof rigid metal housing or increased safety durable glass reinforced plastic or stainless steel
to remove the explosion potential outside or inside the housing so that explosion proof panel can be used in hazardous gas, vapor and dusts environment.
Depends on the closest load devices, normally single-phase lights, receptacles, other three-phase loads such as explosion proof motor starters or whether itself works as a three-phase feeder to a
downstream explosion proof panel or not, explosion proof panelboards can be applied at maximum incoming current(main current) up to 1200A.
If you need any kinds of industrial led, please contact us, as a professional industrial led light manufacturer, SUREALL Tech is willing to offer you high quality products.
