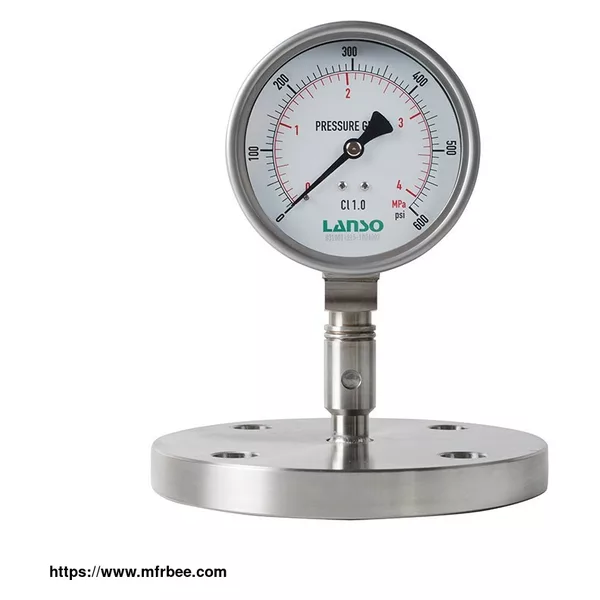

Diaphragm Pressure Gauge
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Diaphragm pressure gauges are mainly used to measure the pressure of special media such as high-viscosity media, granular media, crystallizable media and easy-to-solidification media.
They can measure various corrosive media using the flanges and isolation diaphragms of different structures, suitable for sanitation systems (without out-of-sight corners and residues), etc.
Lanso is committed to offer diaphragm type pressure gauge with reasonable diaphragm pressure gauge price.
Diaphragm Pressure Gauge List
B32.ST+DS27 Flat-Flange Diaphragm Pressure Gauge B32.ST+DS27 Flat-Flange Diaphragm Pressure Gauge
Explore A Range of Industries With High Performance Pressure Measuring Products
Oil & Gas
Petrochemicals
Power System
Firefighting
Food & Beverage
Biotech & Pharmaceuticals
FAQ of Diaphragm Pressure Gauges
Why are different filling fluids filled into diaphragm pressure gauges?+
The filling liquid is selected according to the temperature of measuring media, the ambient temperature of the instrument and "no harm" requirements for filling liquid.
How to improve the accuracy and temperature performance of diaphragm pressure gauges?+
Please choose the flanges with large specifications (i.e., large diameter) at the low range for better accuracy and temperature performance of the diaphragm seal type pressure gauge.
Precautions for cleaning of diaphragm pressure gauge+
When the diaphragm pressure gauges are cleaned, only flush the diaphragm area, and do not contact the diaphragms with hard objects, and prevent the diaphragms from being damaged.
How does a diaphragm pressure gauge work?+
The measured media are separated from the measuring system by using the diaphragm. After the diaphragm senses the pressure of the measured media, the diaphragm conveys the pressure to the Bourdon
tube depending on the filling liquid of which the measuring system is full, so that the end of the Bourdon tube moves due to elastic deformation. Through transmission and amplification of the
mechanical transmission mechanism (connecting rod and movement), the pointer turns on the dial to indicate the corresponding readings.
How to install a diaphragm pressure gauge if the field space is limited?+
Diaphragm pressure gauges can pass through a capillary so that the measuring instruments and flanges are installed at different positions.
As a pressure gauge manufacturer, we can offer sorts of pressure measurement device for sale, if you are interested, please contact us.
