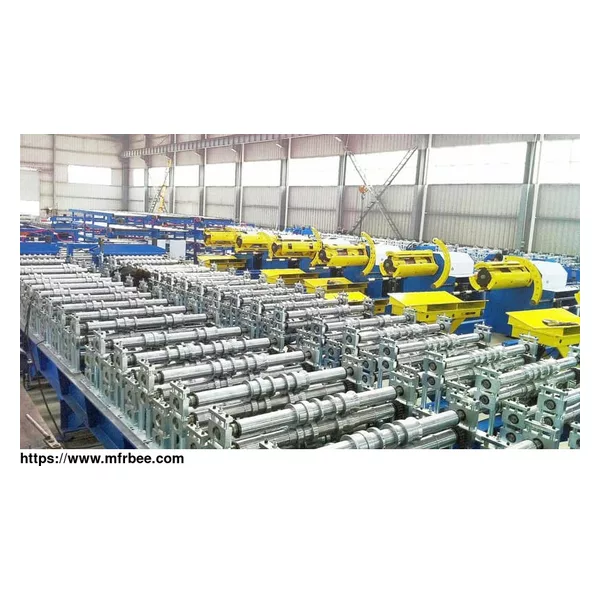

Double Layer Roll Forming Machine

Double layer cold roll forming machine , also called double deck roll forming machine. To meet the requirements for roll forming two different profiles in a limited plant area, the double layer forming machine is designed. The china roofing sheet machine is considered to be one of the most cost-effective roll forming equipment and has been widely used in many industrial plants and steel structures. At present, double deck roll formers for sale, provided by China roofing sheet machine supplier Hangzhou Roll Froming, has been widely used in the United States, Canada, India, Russia, Australia, Asia, Europe, the Middle East and other countries and regions. It can be seen that the double roll forming apparatus has broad market prospects. Compared with the ordinary double layer forming machine, the double deck roll forming machine has great advantages. In order to produce different metal roofing sheets and metal wall panels, the machine is equipped with two layers of forming rollers. The palletizing system is adjustable up and down to accommodate the height of the two floors. The double layer roll forming machine can be used to produce corrugated steel sheets of two different shapes, such as two wall panels or roof panels, a deck panel, corrugated sheet, and so on. This machine can save a lot of work space and improve work efficiency. If you are interested in China roofing sheet machine, please feel free to contact us!

Main Features and Advantages of Double Deck Roll Forming Machine

With 2 layers of guiding tables, roll forming and cutting to length systems, our double deck roll forming machine can produce 2 profile sheets on the same machine.



Fast and easy changeover between 2 profiles: operate on PLC screen, no need to change or adjust any roller tooling.



Save both space and cost for the user.



Production speed: 20/30/40/50/60 m/min optional.



Working with a non-stop flying cut and a full automatically stacking system. The max speed of this double-layer roofing sheet production line can reach 60 m/min.



Certified with Multi-Patents; CE Certified, EUROPEAN quality standard.



Hangzhou Roll Forming Technology Co., Ltd have a variety of roll forming machines double. The machine is equipped with a quick product changeover system. The double-layer forming machine has alternative layer：bottom and upper layers. Rollers for one profile( like AG panel sheet) are installed in the bottom layer, and rollers for another profile(like corrugated sheeting )are mounted on the upper layer. The whole line needs only one decoiler, one machine frame, one cutting device, one electric controlled box, and one hydraulic system. It is one of the most cost-effective roll forming equipment.

Welcome both national and international customers to contact us for more information about double-layer roofing sheet roll forming machines.

Double Layer Roll Forming Machine FAQs

Q Can the double layer roll forming machine process two profiles at the same time?A

No. Because the two panels share the same electronic system and frame, the machine can make one panel in the same time.



Q Why I need a double layer forming machine?

A double layer roofing sheet roll forming machine can make 2 profile in the same machine. The upper rollers make one profile, and the lower rollers make the other profile. Because the two panels share the same electronic system and frame, this machine is cost-effective. In addition, this machine takes up less space.



Q Can I make trapezoidal and corrugated panels on the same double layer forming machine?

Yes. One layer rollers make corrugated panel, and the layer rollers make trapezoidal profile.

As a professional tube mill manufacturer, we provide steel coil upender, coil upender, square pipe forming machine, china square tube making machine and etc. Contact us to know more.

There are many double layer roll forming machine manufacturers, but we are one of the best choices for you.
