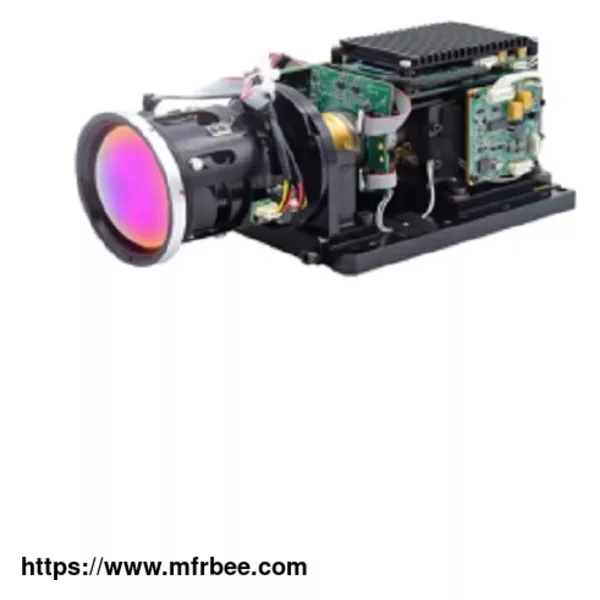

MWIR Camera Module EverCoreM1280C

MWIR Camera Module EverCoreM1280C

The module adopts high-quality medium-wave cooling detector, stable and durable, produces clear image, can meet the use of various harsh environments. The MWIR camera core module is suitable for the integration and secondary development of ultra-long-range intrinsically safe thermal imaging camera system.

Specifications of MWIR Camera Module EverCoreM1280C

model EverCore640MC

cooling Stirling refrigerator

detector performance

material HgCdTe

resolution 1280×1024

pixel pitch 15μm

response spectrum 3~5μm

F.no 4

NETD ≤20mK

lens

focal length 15mm~330mm continuous zoom(typical)

FOV 35°×28°~1.7°×1.4°

F/# 4

optional lens 60/240mm 2-field, 21mm~420mm continuous zoom, 30mm~500mm continuous zoom, 30mm~660mm continuous zoom and others,3-field, 2-field optional

image performance

correction manual correction, background correction

image enhancement auto image filtering, digital detail enhancement

image flip vertical flip, horizontal flip

frame rate Max 100Hz

zoom-out 2X, 4X

polarity black hot/white hot

cross yes

interface

control RS232/RS422

analog video output PAL

digital video output LVDS/CameraLink

power system

voltage 20V~28VDC (power protection)

power consumption <12W@25℃ standard working state

<24W@25℃power on peak

cooling time ≤6min(under normal temperature)

environmental

working temperature -40℃~+60℃

storage temperature -40℃~+70℃

humidity 5%~95%, (non-condensing)

shock half-sine, 30g, 11ms ,3 times/axis

vibration 3-axis,30min/axis,2.1g rms,10-500Hz

general

dimension 143.5mm×94mm×87.5mm

weight ≤880g

Features of MWIR Camera Module EverCoreM1280C

Cooled MTC detector.

Continuous optical zoom, triple/dual FOV lens and lens-less module configurations are available.

Powerful image processing algorithms integrated in hardware and software.

Easy to integrate and compatible with energized power and video interfaces.

Small and compact ir camera module design, Heat dissipation frame, ensure stable operating.
