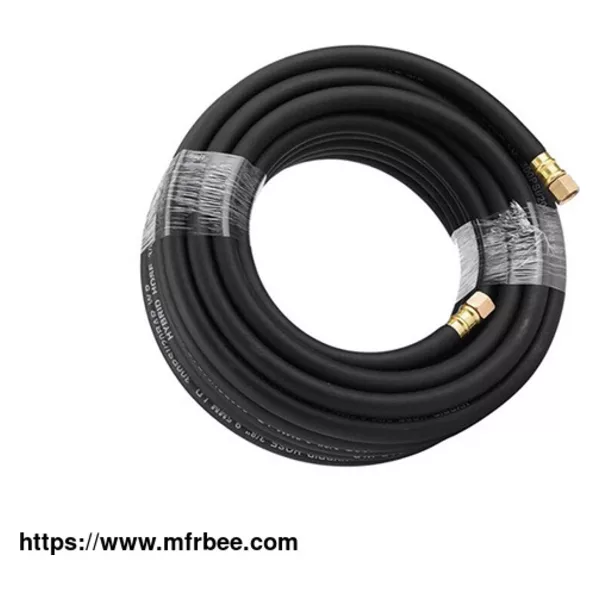

PVC Air Hose

Minimum Order: 3000

Packaging: CARTON

Delivery: 30 Days

PVC Air Tube

Characteristics: light –weight, wear resistance, erosion resistance, good flexibility

Working Temperature: -5°C-65°C

PVC air compressor hose is made of tough PVC materials and high tensile polyester reinforcement,it can work under very high pressure.

Color: blue, red, black, green, white and so on

Layer: 3 layers or 5 layers

Fitting: as per clients’ requirements.

Apply to: some pneumatic tools, pneumatic washing apparatus, compressors, engine components, machinery service tools, pesticide spraying apparatus and civil engineering pneumatic hammers

Specification of China PVC Hose

Item No. Type Hose dimension WP BP

I.D O.D Wall

Inch mm mm mm BAR BAR

PVCAIR-0611 1/4" 6 11 2.5 15 60

PVCAIR-0612 1/4" 6.5 12 2.75 20 60

PVCAIR-0814 5/16" 8.5 14 2.75 20 60

PVCAIR-1016 3/8" 10 16 3 20 60

PVCAIR-1320 1/2" 13 20 3.5 20 60

PVCAIR-1625 5/8" 16 25 4.5 20 60

PVCAIR-1928 3/4" 19 28.5 4.75 17 52

PVCAIR-2534 1" 25 34.5 4.75 16 48

PVCAIR-3244 1-1/4" 32 44 6 15 46

PVCAIR-3850 1-1/2" 38 50 6 15 45

PVCAIR-5064 2" 50 64 7 10 30

More details of pvc air compressor lines, please visit our website.

As one of hose pipe manufacturers, we will do our best to meet all the needs of customers.
