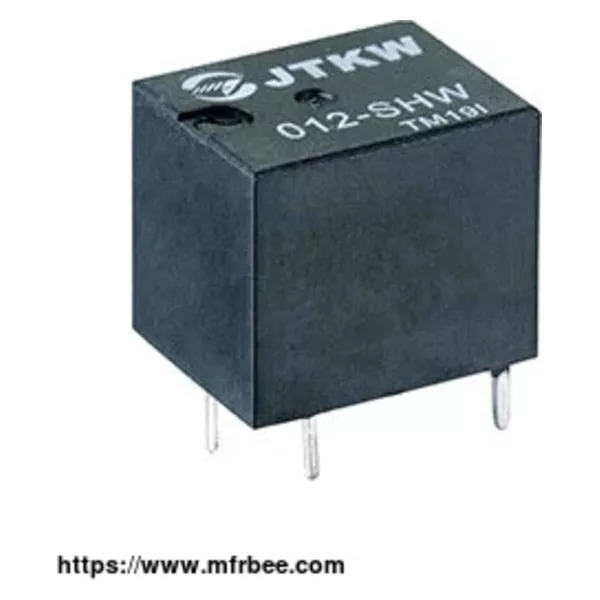

Intermittent Wiper Relay JTKW
Product Quick Detail
- FOB Price
- USD $50.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 10000
- Packaging
- N/A
- Delivery
- 12 weeks
Specifications
Intermittent Relay JTKW
Contact arrangement 1A, 1B, 1C Dielectric strength4) 500VAC
Voltage drop(initial)1) Typ.: 50mV(at 10A)
Max.: 250mV(at 10A) Operate time Max.: 10ms (at nomi.vol.)
Max. continuous current2) 35A(at 23°C, 10min)
25A(at 23°C, 1h) Release time5) Max.: 5ms
Max. switching current3) NO: 35A
NC: 20A Shock resistance6) 98m/s²
Max. switching voltage 16VDC Vibration resistance6) 10Hz to 55Hz 1.5mm DA
Min. contact load 1A 6VDC Ambient temperature -40°C to 85°C
Electrical endurance See "CONTACT DATA" Termination PCB
Mechanical endurance 1 x107 ops(300ops/min) Unit weight Approx. 6g
Initial insulation resistance 100MQ(at 500VDC) Construction Plastic sealed, Flux proofed
Tight structure and light weight
High current contact capacity(Carrying current:35A/10min 25A/1h)
Improved heat resistance
ROHS&ELV compliant.
Int Wiper Relay Benefits
01
Improved visibility: The intermittent wiper function helps to clear the windshield of rain, snow, or other debris, which improves visibility and makes driving safer.
02
Reduced wear and tear: By controlling the timing of the wiper system, the intermittent wiper relay helps to reduce the wear and tear on the wiper blades and motor, which can prolong their lifespan.
03
Better energy efficiency: The programmable intermittent wiper relay ensures that the wiper system is not constantly running, which can improve energy efficiency and reduce the load on the
vehicle's electrical system.
04
Convenience: The intermittent wiper function provides greater convenience for the driver, as they do not have to continuously adjust the wiper speed to match the changing weather conditions.
05
Cost savings: By reducing wear and tear on the wiper blades and motor, the intermittent wiper relay in china can help reduce maintenance and replacement costs over time.
Now the intermittent wiper relay cost is reasonable, if you have needs, please contact us.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:
- Founded Year:
- Address:No. 5, Shuntai Road, Yangming Industrial Zone, Yuyao City, Zhejiang CHINA
- Contact:zettlernb com
