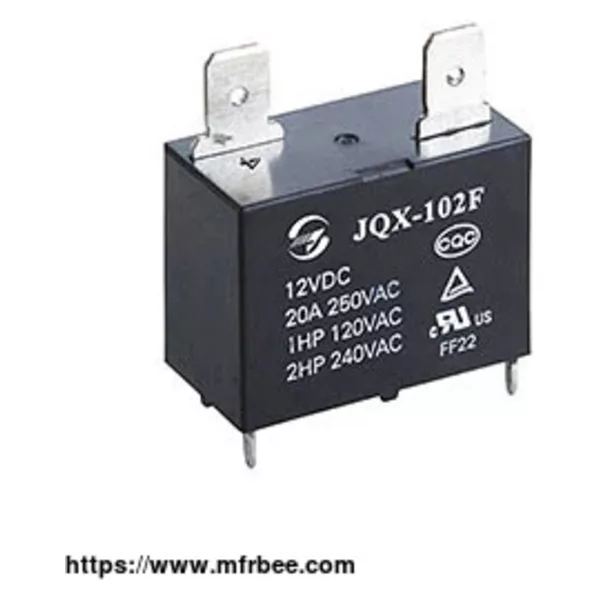

Miniature High Power Relay JT102F

FOB Price: USD $50.00 / Piece
Place Of Origin: china

Minimum Order: 10000

Packaging: N/A

Delivery: 12 weeks

Insulation resistance Dielectric strength Operate time(at nomi. volt.) Release time(at nomi. volt.) Temperature rise(at nomi. volt.) Shock resistance Vibration resistance Humidity Ambient temperature Termination Unit weight Construction

Between coil & contacts Between open contacts Functional Destructive

1000M Ω (at 500VDC) 4500VAC 1min 1000VAC 1min 20ms max. 10ms max. 60K max. 196m/s² 980m/s² 10Hz to 55Hz 1.5mm DA 5% to 85% RH -25'C to 85°C JT102F: PCB & QC

JT102F-P: PCB Approx. 23g Dust protected

25A switching capability

Ideal for motor switching

Dust protected type available

PCB&QC layouts available

Environmental friendly product (RoHS compliant)

Outline Dimensions: (30.5 x 16.0 x 23.5)mm

UL insulation system: Class F.

Small Relay, Micro Relay JT102F Advantages

High switching capacity: The JT102F relay has a high switching capacity, which means it can handle larger loads than other types of relays.

PCB mountable: The JT102F china relay is designed to be mounted on a printed circuit board (PCB), which makes it easy to integrate into electronic circuits.

Sealed design: The JT102F relay has a sealed design that provides protection against dust and moisture, making it suitable for use in harsh environments.
