The structure of LFP modules mainly has a banding structure. Due to the high flexibility of banding modules, the quantity in series and parallel of lithium ion battery cells can be determined
according to the demand of customers. Generally, Lithium Storage offers the following LFP battery modules:
Flexibility in series and parallel 50~302Ah lithium battery cells, 1P8S or 1P4S LFP modules are common types.
Heating pad is optional
Connector type and definition can be customized
LFP Battery Module or Cell with Nut/Screw Terminals-Pack?
For improving production efficiency, the positive and negative terminals of lithium-ion batteries have been upgraded from screw-hole terminals to flat welding terminals. The new generation lithium
batteries require welding equipment for battery connections. Sorting out the demand from the international market, many international customers still prefer to choose cells that screws or bolts can
connect than flat welding terminals. The following points are pointed out by customers:
The total pack or custom module needs to be replaced once one cell of the battery pack fails in the operation. As well as, there is a dimension limit on module size for different application cases
from the local market, and there is low feasibility of using the same module to meet all pack requirements. Therefore, customers prefer cells with nut/screw terminals for the flexibility of pack
installation.
However, as a professional lithium ion battery supplier in China, Lithium Storage recommends customers select LFP battery modules instead of cells with nut/screw terminals because of their high
structural stability and welding reliability.

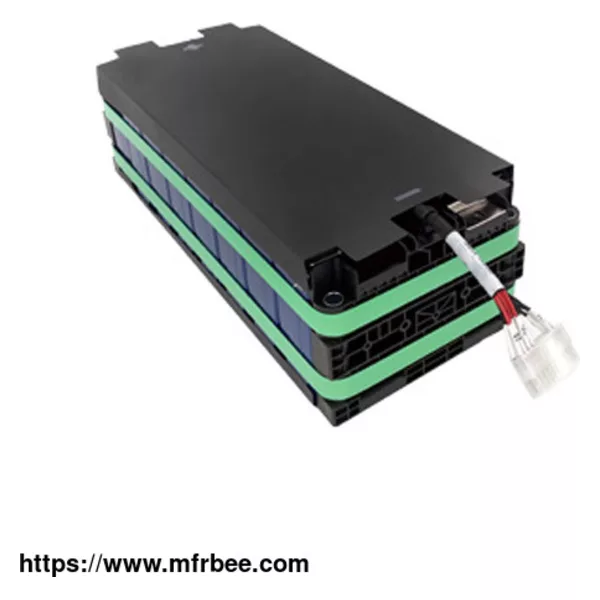

LFP Banding Module Structure
The LFP battery module has high flexibility in production due to its structural characteristic.
lithium battery cells are connected by an aluminum busbar via laser welding.
Banding belt structure, the upper part is a steel belt and the lower part is a plastic belt.
M4 hole on the aluminum busbar is applied to fix sampling wiring.
Bolt connection for the positive and negative output of modules
Standardized mold plastic end plate design
LFP Battery Module Certifications
Cell type Quality Management System Products Certification
ISO-9001 IATF16949 ISO-14001 ISO-45001 GB/T 31485-2015 GB/T 31486-2015 GB/T 31484-2015 GB/T 36276-2018 GB 38031-2020 GB/T 31467.3-2015 IEC62619 UL1642 UL9540 UL1973 CE-Battery Directive /RoHS MSDS
UN38.3 BIS JET
LFP40Ah √ √ √ √ √ √ √ / / / √ / / / / √ √ / /
LFP50Ah √ √ √ √ √ √ √ / √ / √ √ / / √ √ √ √ √
LFP100Ah √ √ √ √ √ √ √ / √ / √ / / / √ √ √ / /
LFP135Ah √ √ √ √ √ √ √ / √ / / / / / / √ √ √ /
LFP205Ah √ √ √ √ √ √ √ / √ / / / / / / √ √ / /
LFP280Ah √ √ √ √ √ √ √ / √ / / / / / / √ √ / /
LFP280Ah long cycle √ √ √ √ / / / √ / / √ / √ √ / √ √ / /
LFP302Ah √ √ √ √ √ √ √ / √ / / / / / / √ √ / /
