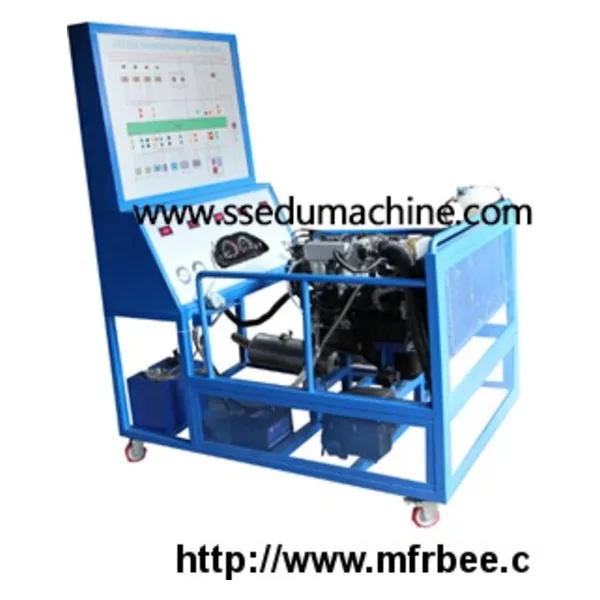

Car Trainer DOHC VVTi Training Stand

Engine Model: original Passat engine Displacement: 1.8L

Engine oil grade: API, standard SG grade Storage battery: maintenance-free battery

The complete rack use square tube of 40*40*2mm thick and angle iron of international standardized profile to conduct seamless welding, its surface is dealt with high temperature spraying plastics after polishing, which is anti-corrosion, anti-aging and fastness, it is installed with universal self-locking castor on the bottom of the rack, which is convenience to teach movably.

Its component parts: engine, transmission, clutch, auto light instrument, auto steering system, auto transmission system, auto braking system, seats, steering wheel and so on.

It let students understand the construction and working principle of overall auto. It sets common fault, students can carry on analyzing, detecting and diagnosing on fault through troubleshooting, it develop students ability of thinking of fault analysis, detection, diagnosis.

It fully showed the composition, structure and circuit component of circuit system of overall auto, and they conduct work through data transmission.

The light system is controlled by physical switch and analogue switch, and it can set line fault.

The start charging system can use multimeter to detect voltage and current of each circuit joint, it can set line fault.

The ignition system of engine can be observed ignition state of spark piston directly, it can set relevant fault.

It can observe oil injection process of each oil atomizer directly, restrictor’s effect on fuel-injection quantity, and open circuit fault of fuel injection pump.

Instrument signal uses analog signal with each sensor, it can set relevant fault.
