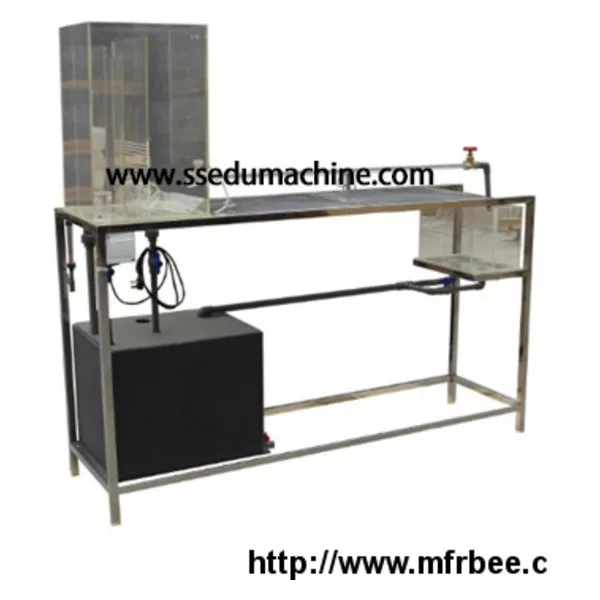

Laminar And Turbulent Flow Apparatus

The experiment device is mainly by the water tank experiment tube kit PVC pipe valves and stainless steel platform, etc

The experimental pipe: inner diameter 16 mm, length 1000 mm, transparent organic glass tube, facilitate students to observe the detail inside the glass tube and the phenomenon. This experiment mainly by adjusting the water flow control valve to change the velocity of fluid flowing through the tube and observed indicating liquid change with velocity of flow patterns

Kit: volume>300ml. Indicating liquid is red ink or other colorful liquid. By indicating liquid control valves in the pointed mouth into the test tube.

The laboratory water tank: transparent organic glass, the effective volume is more than 40 L. The overflow mouth is to ensure that maintain the overflow stable state of the water in the sink. Outlet is to facilitate cleaning tank.

Water storage tank, stainless steel material, volume is more than 60 L.

Metering tank: transparent organic glass materials, the effective measurement volume≥6L
