Vacuum Road Sweeper

MANTEN vacuum road sweeper is also called wet and dry vacuum cleaner. Manten vacuum road sweeper truck is the first new high-tech environmental sanitation equipment developed by our company using new patented technology. Suction, using the air flow as the driving principle to complete the work, and can filter micron-level particles, effectively reduce dust pollution, and filter inhalable particles synchronously, effectively reducing the content of various dust and other particles in the air, improving air quality , with a wide range of dust collection (all particles and dust with a particle size of less than 100mm), high cleaning rate (99.5% cleaning rate), no secondary dust at the suction port, no dust emission at the air outlet, no maintenance, long service life work. It has the advantages of high efficiency and is the preferred product for sanitation cleaning and material recovery. It is widely used in industrial and mining enterprises with high dust, high concentration and high density that are prone to dust pollution.

Different Types Of Vacuum Road Sweeper

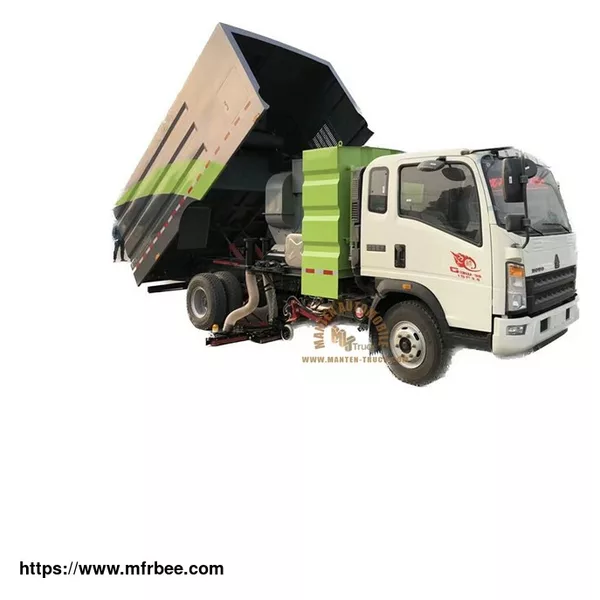

8 Tons Howo 4x2 Vacuum Suction Sweeper

The whole vehicle adopts 10 conical membrane filter cartridges, the filter area is ≥90 square meters, the filter area is large, and the suction effect is better; and the air pulse filter cartridge cleaning device is installed, which greatly improves the filter cartridge cleaning effect. It can effectively reduce the clogging of the filter cartridge by dust and improve the operation effect; it is equipped with a large-capacity dustbin and dust box to improve the operation efficiency.

Dongfeng 12 Tons Vacuum Road Sweeper

The unique arc-shaped box structure is adopted, the rear door is opened upwards, the disassembly and maintenance of the filter cartridge is simple and convenient, the garbage can can be tipped, and the unloading is convenient without manual intervention.

Dongfeng 15 Cbm Vacuum Sweeper Truck1

The unique arrangement of large sweeping reel with sweeping brush vacuum hood and slider manual adjustment combined mechanism sweeping device + central wide suction nozzle solves the problem of dust in sweeping operations and sweeps away the roadside stone garbage. The dry-wet switching control mechanism and the full-sweep switch adjustment mechanism are set up (left and right separate control cleaning devices are optional), which realizes the diversification of operation modes. According to different operation requirements, dry operation mode and wet operation mode can be used respectively. In each mode, the opening of the left and right suction port switches can be adjusted separately, and the application range is wide.

Specification of Vacuum Road Sweeper

SPECIFICATION

Truck Specification

Product Name VRoad sweeper Truck

Truck Manufacturer MANTEN GROUP

Chassis Specification

Chassis brand Dongfeng , Foton, Sinotruk Howo, ISUZU, FAW ,NORTH BENZ, JAC, CAMC ,

Drive type 4X2 ,6X4,8X4, 4X4, 6X6,8X8

Engine brand Cummins, ISUZU ,Wechai, Yuchai, Yunnei

Transmission brand Fast ,ZF , Manual/ ATM

Tire brand Tri-angle, Double Coin, Good year ,Michelin

Upper body specification

Working Performance 1. Sweeping efficiency 95%;

2. Max suction size 120mm;

3. Sweeping width 2.8-3.4m;

4. Max cleaning capacity 60000 m2/h;

5. Butterfly disc extend size ≥400mm;

6. Sweeping speed 3-20km/h

Deputy Engine System

Deputy engine model ISUZU OR Cummins engine

Fuel type diesel

Tank System

Water tank Material : stainless steel

Volume: 1500L-6500 L

Garbage tank Material : stainless steel

Volume : 4000L-16000 L

Discharging door opening angle : ≥45°

Hydraulic System

Type electrical control

Main components gear pump, hydraulic motors, hydraulic cylinders, solenoid valve

System pressure 16Mpa

Hydraulic oil tank capacity 60L

Oil temperature 60℃

Electrical System

Type DC24V

Voltage 24V

Battery 24V

Spraying Water System

Main components electric diaphragm pump, water filter, nozzle

Sweeping Device System

Type centre installation 4pcs sweeping disc,hydraulic motor drive, right front can be independently controlled, with functions of avoiding collision response

Sweeping disc diameter 850mm

Sweeping disc- angle forward 4-6°,

outword 4-7°

Sucking Disc System

Type single suction, hydraulic control, spring suspension

Suction entrance diameter 200mm

Vacuum Road Sweeper Manufacturer's Service

1. Requirement confirmation

Our sales team will contact you. For your purchase needs, they will provide you with reasonable advice from a professional point of view. At the same time, relevant product introductions will be sent to you for your reference.

2. Technical Support

After the needs are confirmed, the technical team will provide technical support, plan and configure products according to your needs, and finally provide you with the best solution.

3. Plan quotation

Through the feedback of the technical team, the sales team will make a detailed product configuration plan and quotation for you.

4. Discussion

We sincerely hope to establish a cooperative relationship with you, and your satisfaction is our unremitting pursuit.

Now the price of street sweeper vacuum truck for sale is affordable, if you have needs to buy road vacuum cleaner truck, please contact us.

As a truck provider, we will do our best to meet all the needs of customers.
