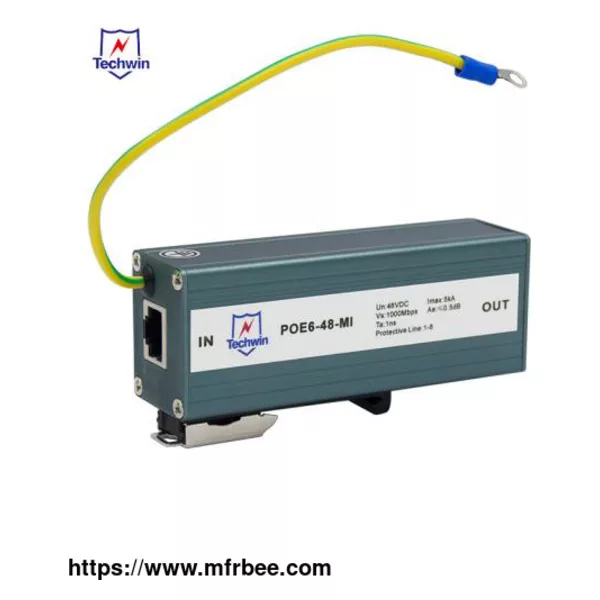

POE Surge Protector (Gigabit)
Product Quick Detail
- Minimum Order
- 1
- Packaging
- paper box
- Delivery
- 30 Days
Specifications
Power over Ethernet protector is designed for POE power surge supply equipment, are widely used in the areas of wireless coverage, security monitoring, etc. to protect the communication
equipment's SPD POE port line from the impact of lightning Electromagnetic pulse, lightning electromagnetic pulse, switching overvoltage.
Features of SPD for Ethernet Power System POE6-48 POE6-48-24
Multi. Protection circuits, Gas-Tube+ TVS technology
Dual protection in Common module and different module
TVS array technology, low capacitance
Multi-Strike Capability
Application Of SPD China for Ethernet Power System POE6-48 POE6-48-24
POE6-48 POE6-48-24 is designed for Ethernet device not to be spoiled by lightning over-voltage, induced over-voltage, and static discharge.
CAT6, CAT5e, and CAT5 compatible
802.3af
10/100/1000 Base-T Gigabit Ethernet protection
LAN, FDDI, CDDI, ATM, WLAN
PDH, SDH, SPDH
Industrial control
Technical Parameters of Ethernet Surge Protector POE6-48 POE6-48-24
Model POE6-48 POE6-48-4 POE6-48-8 POE6-48-24
Lightning projection
zone(LPZ) 2
Standards Compliance IEC61000, EN60950, GB/T18802.21-2002, TB/T2311-2002
According to IEC61643 III
According to DIN
VDE6075 Part6
(Draft 11.89) A1, A2 D
Max continuous
operating voltage Uc 68VDC
Nominal working
voltage(Un) 48VDC
Nominal discharge
current (8/20µs) In 3KA
Max discharge current
Imax (8/21µs) Imax 5KA
Voltage protection Level
@C2(8/20µs) Up ≤190V(L-L)≤500V(L-G)
Voltage protection Level
@C3(1kV/µs) Up ≤145V(L-L)≤600V(L-G)
Rated load current IL 200mA
Limiting Voltage
(10/700µs) ≤20V
Cut-off Frequency fG 250MHz
Response time tA
(L-N/N-PE) 1ns
Protection line 1/2, 3/6, 4/5, 7/8
Mounting Be Installed between protected equipment and signal line
Adapt Transmission rate 1000Mbps
Transmission standards 100BaseT/ 1000BaseT/1000Base TX, CAT5/CAT6, POE
Dimension 104H)×58(W)×28(L)mm 95 (H)×85(W)×48(L)mm 190 (H)×85(W)×48(L)mm 482 (H)×86(W)×44(L)mm
Interface form RJ45
IP code(IEC EN 60529) IP20
Error rate ≤10-12
Material/color Aluminum/Blue
Insertion loss ≤0.1dB
Working conditions Temperature: -40 to 85℃, Relative humidity: ≤95％
If you want to know more kinds of poe lightning arrester and ethernet arrester, please visit our website.
As one of lightning protection companies, we will do our best to meet all the needs of customers.
