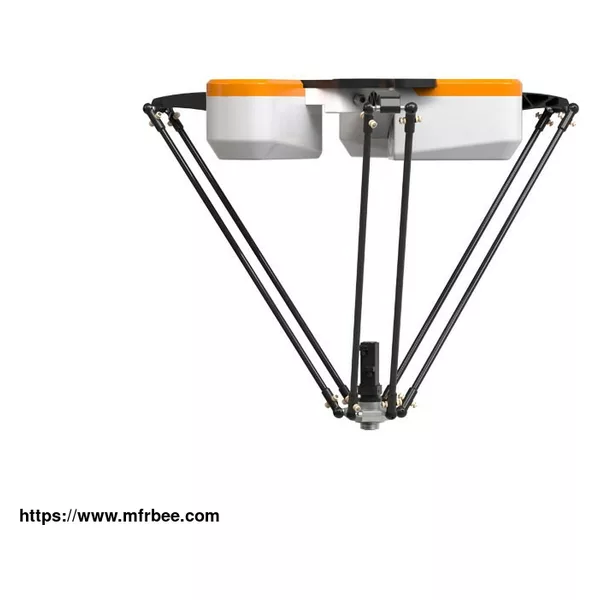

BAT1100M-E3 Delta Robot

BAT1100M-E3 delta robot is a 4-axis parallel robot with a rated payload of 3kg as well as a flexible and sensitive delta robot arm, which has the characteristics of high speed and precision, small footprint and strong rated power. It contributes to a flexible production during high precision and high speed manufacturing lines.

Specification of BAT1100M-E3 delta arm robot

Robot Model

BAT1100M-E3

Rated Load

3kg

Working Space Diameter

1100mm

Number of Axles

4

Repeated Positioning Accuracy

0.08mm

Repeated Positioning Accuracy of four Axis Angle (°)

0.05°

Maximum Speed

10m/s

Power Supply Voltage

AC380V±10％, 50/60HZ

Rated Power

3.5kW

Protection Grade

IP54

Weight

65kg

Features of BAT1100M-E3 Delta Arm Robot

The maximum payload is 3kg

The working space diameter is 1100mm

The repositioning accuracy is 0.08mm

The maximum speed is 10m/s

The rated power is 3.5kW

There are many chinese industrial robot manufacturers, but we are one of the best choices for you.

For more information about automation robotics technology and industrial robot cost, please feel free to contact us!
