Monitor Wedge Speaker
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

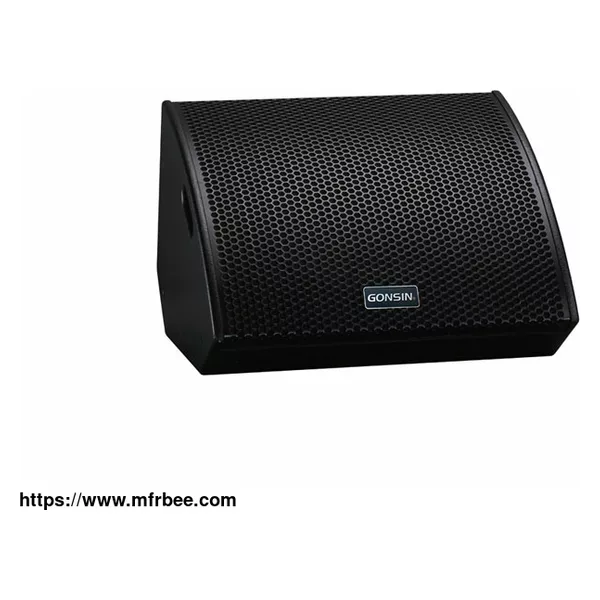

Features of Monitor Wedge Speaker GX-SP1012B-C / GX-SP1015B-C
Compact multi-purpose box structure design can be placed horizontally and vertically
Adopt customized high-efficiency coaxial technology speaker unit
The high/low frequencies have completely overlapping diffusion characteristics
Optimized built-in crossover design, abundant sound pressure and comfortable tone
Have perfect frequency response, phase response and excellent return ability
Black wear-resistant environmentally friendly water-based paint spraying, high-grade elegant appearance
Technical Specifications of Monitor Wedge Speaker GX-SP1012B-C / GX-SP1015B-C
Model GX-SP1012B-C GX-SP1015B-C
Type Passive two way full range speaker
Drivers LF:1×12”; hf:1×1.75” LF:1×15”; HF:1 ×3”
Frequency response 68HZ~20KHZ 70HZ~18KHZ
Sensitivity(1W/1m) 96 dB 99dB
Power 300W(AKS)/1200W(PEAK) 500W(AKS)/2000W(PEAK)
MAX SPL 121dB/127dB 126dB/132dB
Impedance 8Ω
Dispersion 60°(H)×40°(V) 100 °(H)×100 °(V)
Connector 2×NL4MP speakon 2 × NL4MP speakon
Product Size(W*D*H) 417*336*616mm 538 * 375*580mm
Package Size(W*D*H) 500*410*690mm 615 * 445 * 645mm
Net Weight 21.4kg 25.9kg
Gross Weight 23.6kg 28kg
Color Black (white can be customized)
Hanger Foot nail installation
We can offer kinds of audio conference system china for sale, if you have needs to buy paperless conference system, please contact us.
