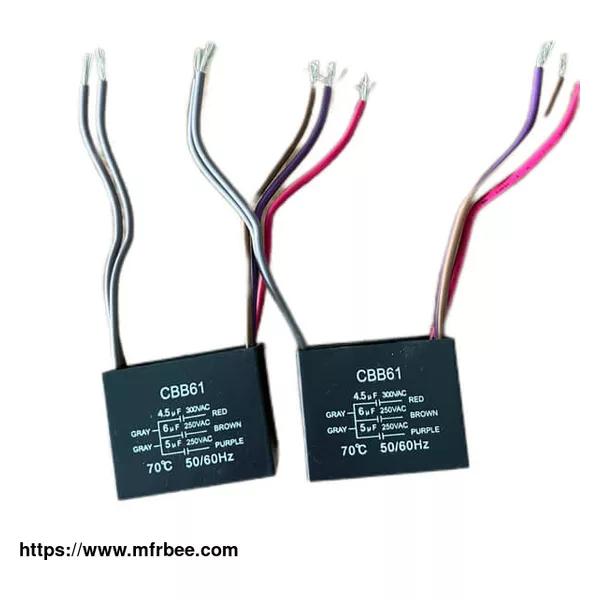

CBB61 Dual Capacitor

CBB61 capacitor ceiling fan is a machine suitable for the starting and running of single-phase motors with a frequency of 50HZ AC power supply, and can also play a role in speed regulation of the motor. It is characterized by plastic shell encapsulation, good appearance consistency; small high frequency loss, suitable for large current; high insulation resistance, good self-healing and long life. It is an important supporting component for electric fans, range hoods, air-conditioning fans, and bread machines.

Specification of CBB61 Dual Capacitor

Reference standards GB/T 3667.1（ IEC60252-1）

Climatic category 40 / 70 / 21, 40 / 85 / 21

Class of operation Class B (10000h) Class C (3000h)

Class of safety protection S0 /S3

Voltage range 250VAC, 370VAC, 440VAC, 450VAC

Capacitance range 1～35μF

Capacitance tolerance ± 5% , ± 10%, ± 15%

Dissipation factor 20 x10-4 (100Hz, 20°C)

Test voltage terminal to terminal UTT 2Un for 2 seconds

Test voltage terminal to case UTC (2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds

Insulation resistance ≥3000s (100Hz, 20°C, 1min)

Structure of CBB61 Dual Capacitor

The capacitor core is wound by the metalized organic film.

Plastic shell, flame retardant epoxy resin potting, single capacitor core, or multi-capacitor core can be installed in one shell.

The installation components include plastic ears and iron ears.

The lead-out methods include plastic-encapsulated leads, tinned copper pins, quick-connect terminals, soldering lugs, etc.

The specifications of size and terminal outside table could produce according to customer requirements.

As one of capacitor manufacturers in china, we can offer types of capacitor for sale, if you are interested, please leave us a message.
